Car Block Set Co2 Laser Cutting Machine with Auto Feeding System/Double Heads

Application

A variety of fabrics can be cut into any graphics precisely which can be made into Sofas, tents, umbrellas, clothing, leather, soft cloth (cloth, leather, plush), car interior (seat covers, floor mats, cushion)

Features

Auto material-feeding platform

Caterpillar band type auto material-feeding platform with new type flat flex belts with strong absorption for wool fabric, realizing continous feeding and cutting with with less labor and material.

Auot edge cutting without rough edge, burr.

With Oneline control system, Work can be loaded from the Cloud.

Fabric Presser

Fabric is adsorbed onto the working table ensured material is fed steadily without creases curled edges

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Double laser head, improving the working efficiency.

Working Table

SUS304 stainless steel Strips: With oxidation treatment and low reflection ratio Ensured cutting quality

Beam Path System

Adopting imported focus lens with high lusciousness and mirror with high reflective ensure stable power transference.

Motion System

Imported High precision,low friction force and stand wear and tear linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port Trocen AWC708WC special auto feeding control system with large inner memory device and Fast rectilinear cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the desgins directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts Optimized heat dissipation effect.

Cooling system

Industrial chiller CW-5200

Technical parameters

Reference Parts Photos

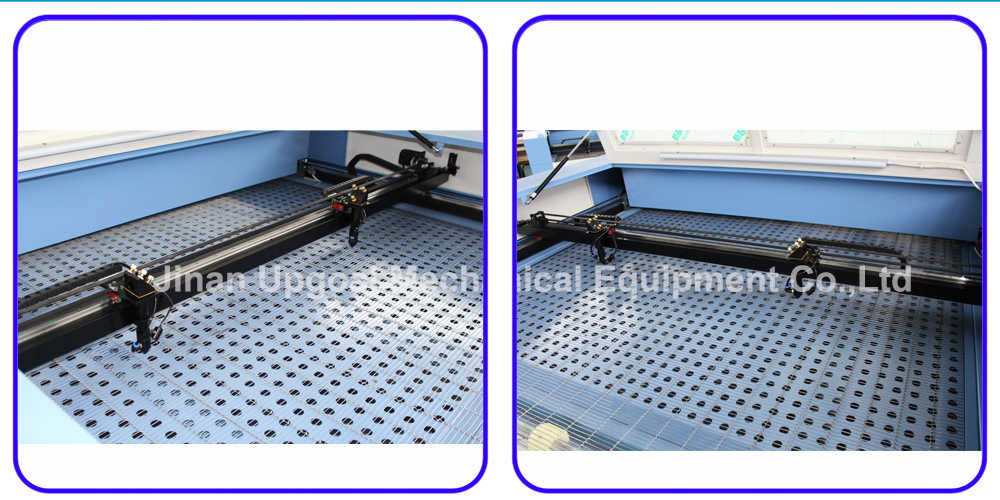

Auto feeding working table

Control cabinet

Reci S4 co2 laser tube, 2 pcs

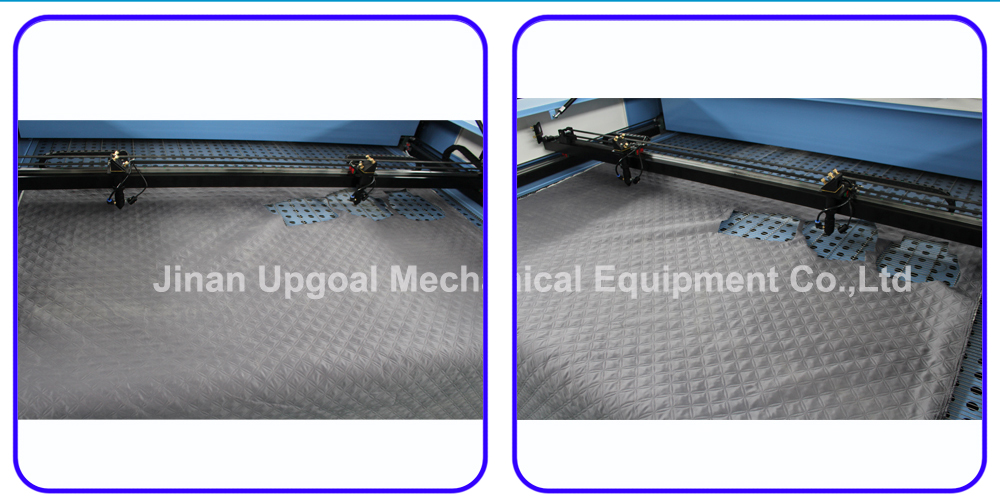

Reference Sample Photos

Reference Working Videos

https://www.youtube.com/watch?v=qQOd1KhDyD4&list=PLZ2SG5kTfvfOCXsQbxHpyInEaDg01cVvL&index=9

https://www.youtube.com/watch?v=uVpQFBKfjaA&t=36s&list=PLZ2SG5kTfvfOCXsQbxHpyInEaDg01cVvL&index=29

For more information, just feel free to contact us!
