UG-1390L Acrylic Co2 Laser Cutting Machine with Leetro Control
System
Application
Application industry: Marble engraving, Advertisement, Gift
Package, Model.
Application Materials: Acrylic,crystal, marble, wood, paper, cloth,
leather, rubber, glass, ceramic tile.
Features
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser
power convert ratio.
Laser Tube
Adopted high quality Reci S2 ( rated power 90W, maximum power 100W) Co2 laser tube, long working time time and stable
Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect
and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting
quality
Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure
stable power transference.
Motion System
Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port Leetro MPC 6585 DSP control system with large inner memory device and Fast curve cutting and
Optimized shortest path function, Greatly improved the working
efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The
High speed motion control program with pre-buffering function
enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs
directly exporting. With advanced Color management and defining the
working turns with different colors , All or a part work can done
in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-3000, ensuring the laser tube long time continus working.
Technical parameters
| Effective working area | 1300*900mm |
| Laser Type | Co2 sealed-off laser tube |
| Laser tube power | Reci S2( rated power 90W, maximum power 100W) |
| Working table | Honey comb and knife strip, double working table |
| Lifting table | Automatic up and down, 300mm |
| Driver mode | 3 phases stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | Leetro MPC 6585 |
| Control software | LaserCut 6.1( no softdog) |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Industrial chiller CW-3000 cooling |
| Water protection system | Yes |
| Focus | Auto focus |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Voltage | AC220V +10% 50/60Hz, single phase or AC 110V+10% 50/60Hz, single phase |
| Certificate | CE/FDA |
Reference Parts Photos
Laser head

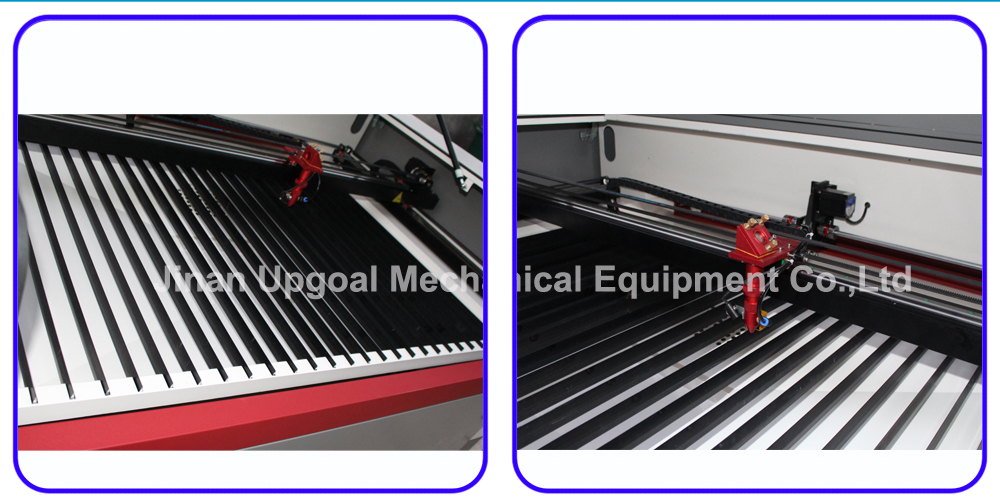

Knife strip cutting table
