Hot Sale Advertisement Co2 Laser Engraving Cutting Machine with
900*600mm Size
Application
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden
toys), advertising filed,decorative and decorating, craft gift
industry, electronic, garments and leather industry, art glass
industry, art glass industry,computerized embroidery and clipping,
packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic,
rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo
products, Double-color board, paper, leather, ceramics, textiles,
crystal, jade, coconut shells, horn, resin animal sebum, ABS plate,
lamp shade and other non-metallic materials
Features
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser
power convert ratio.
Laser Tube
Adopted famous Reci S2 Co2 laser tube, rated power: 90W, peak power: 100W, long time time and stable
Working Table
Honey Comb Table: applicable to various soft materials with Good adsorption effect
and low reflection ratio.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure
stable power transference.
Motion System
Imported High precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise.
Operation System
Advanced USB port Leetro MPC 6585 DSP control system with large inner memory device and Fast curve cutting and
Optimized shortest path function, Greatly improved the working
efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The
High speed motion control program with pre-buffering function
enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs
directly exporting. With advanced Color management and defining the
working turns with different colors , All or a part work can done
in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Water pump cooling
Technical parameters
| Effective working area | 900*600mm |
| Laser Type | Co2 sealed-off laser tube |
| Laser tube power | S2 series, Reci, Beijing (Rated power: 90W, max. Power: 100W) |
| Working table | Honey comb with less knife strip supporting |
| Driver mode | 3 phases stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | Leetro MPC6585 |
| Control software | LaserCut 6.1( no need softdog) |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Water pump cooling |
| Water protection system | Yes |
| Focus | Manual focus |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Biggest scanning accuracy | 2500DPI |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Voltage | AC 220V+10% 50/60Hz, single phase |
| Certificate | CE/FDA |
Reference Parts Photos

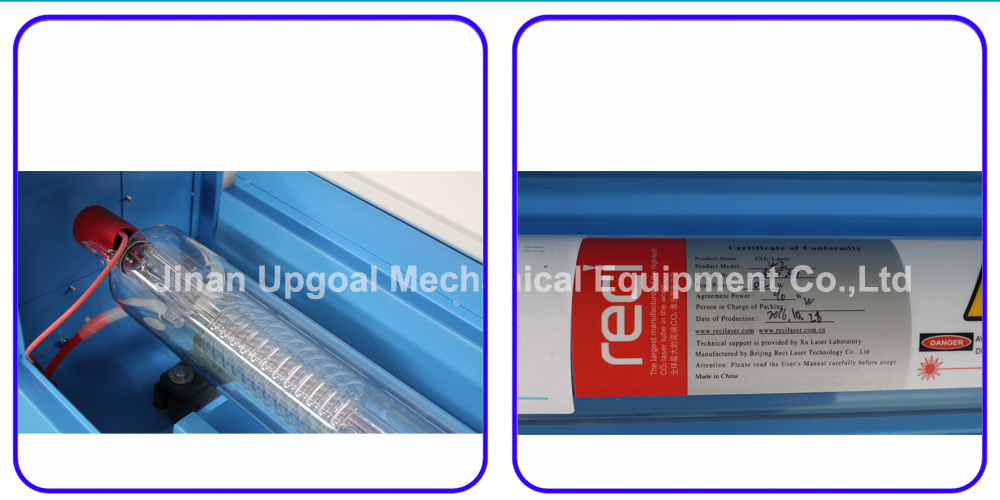

Reci S2 co2 laser tube
Honey comb working table with less knife strip supporting
Laser head
Hiwin, Taiwan linear square guide rail & belt transmission
Yako three phases stepper motor
Leetro DSP offline control panel
Control cabinet
Water protection & power supply socket
Air pump & 550W air blower for below-off
Packing
Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=16K9_mY-yvU&list=PLZ2SG5kTfvfOCXsQbxHpyInEaDg01cVvL&index=28&t=21s
For more information, just feel free to contact us!
