3D CNC Metal Engraving Machine 4 Axis with DSP A18 Control UG-6060
Application
Mould of Copper, Iron, aluminum, stainless steel. Shoe mould,
mobile mould, Red Copper electrode, Building model, name tag,
copper stamp.
Features
1. Cast Iron structure( cast iron machine bed & working table & gantry
& Z-axis) with vibration Temper aging treatment ensures no deformation for
long time.
2. Cast iron T slot working table with platformmoving type. Durable without deformation enable positioning more precision .
3. Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.
4. Three axis with precision ball screw transmission ensure the engraving speed and accuracy.
5. High variable speed 2.2kW water cooling spindle, big torque, longer life, strong cutting ability and continuous
work for long time.
5.Powerful stepper motor and driver for XYZA-axis, compared with the stepper motor, ensuring high speed and
precision working
6. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic
parts, minimizing fault rate.
7. Stainless steel water slot cooling system, ensuring the cooling for the metal & hard materials.
8. DSP A18E 4 axis offline control system with USB interface which is completely off from Computer. More Humanized design with
Simple and Convenient Handle type operation.With pre-calculation
rule, fully excavating potentialities of motors. Enable high
processing speed, synchronization of Curve and straight line, more
perfect curve working and Spindle startup and stop automatically.
9. 4th axis, rotary axis, diameter 100mm, working length 600mm, for cylinder engraving.
10. With the function of break-point memory ,power failure resuming and automatic home/origin correction
function.Effectively ensure long time working precision.
11. Working Pause, Speed adjust, Working depth adjust at any time while
working. Preview the 2D&3D working result With simulation function.
Variable Speed is suitable for various materials and industry.
12. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit
protection function which can stop the mechanical collision due to
unproper size given to the design.
Technical Parameters
| Effective working area | 600(X)mm*600Y)mm*200(Z)mm |
| 4th axis | Rotary axis, diameter 100mm, working length 600mm, reduction gear
transmission |
| Materials | Cast iron machine bed & working table & gantry & Z-axis |
| Working table | Cast iron T slot |
| Moving type | Platform moving |
| Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
| Transmission | Lead ball screw for XYZ-axis |
| Driving mode | Stepper motor and driver for XYZA-axis |
| Spindle motor | 2.2kw water cooling |
| Spindle speed | 0-24000rpm |
| Inverter | Sunfar, Taiwan |
| Voltage | AC 220V+ 10%, 50/60Hz, single phase or AC 380V+ 10%, 50/60Hz, three phases |
| Traveling speed | >8000mm/min |
| Engraving speed | >6000mm/min |
| Machine accuracy | 0.03mm |
| Control system | DSP offline control system, 4axis, A18E |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Cooling system | Stainless steel water slot cooling |
| Tool calibration | Auto |
| Certificate | CE |
Reference Parts Photos
2.2kw water cooling spindle
DSP A18 4 axis offline control system
Hiwin linear square guide rail and lead ball screw transmission for
XYZ-axis

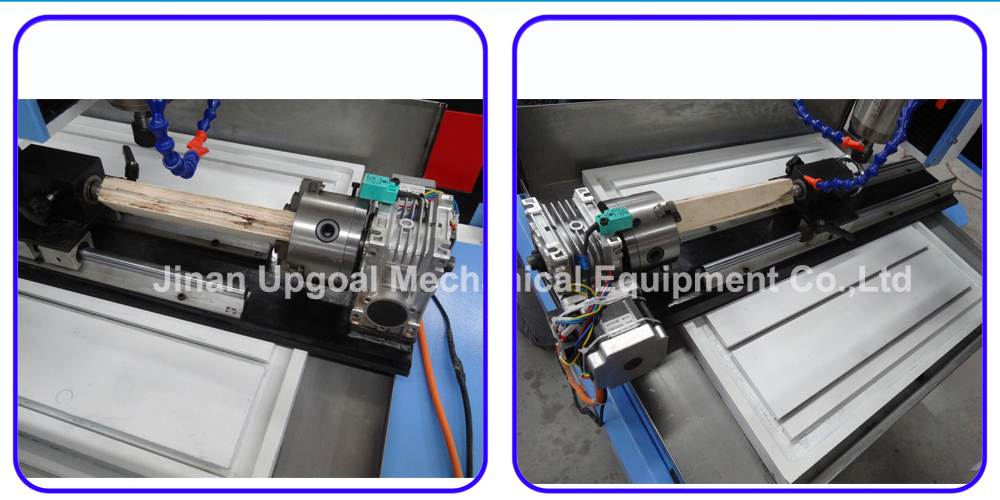

4th axis rotary axis diameter 100mm, working length 600mm,
reduction gear transmission
Stainless steel water slot cooling
Control cabinet
Auto tool cabliration

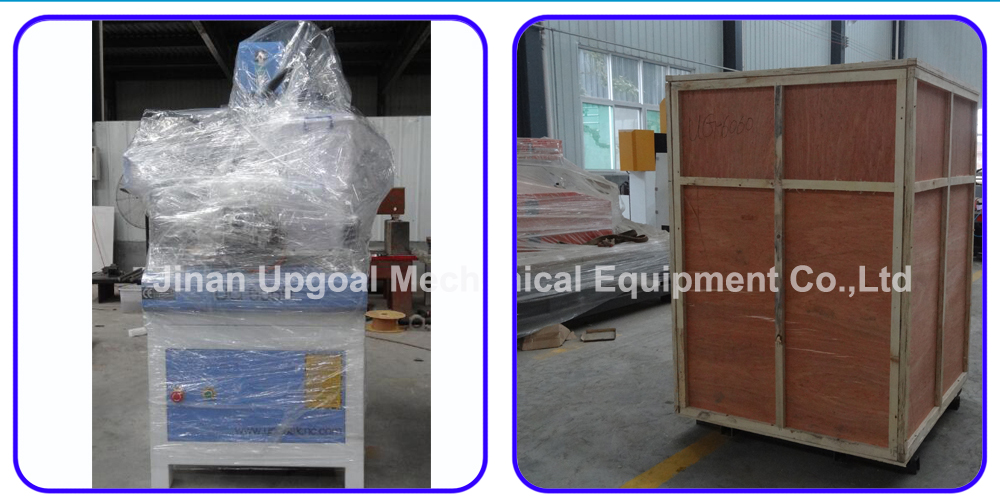

Accessories
Packing
Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=bMC10tbgSbA&t=330s
