CNC Wood Door Machinery with Air Cooling Spindle/Computer Cabinet
Application
Woodworking products, advertising signs, MDF board, cutting
engraving Photo frame, sculpture the sofa and the head of a bed,
All kinds of wood door carvings, Large furniture relief engraving,
Dalle hollow out and simple copper aluminum plastic board, etc
Features
1.Welded steel tube structure as a whole with vibration Temper aging treatment ensures no
deformation for long time.Cast iron Gantry, the structure is strong and stable.
2. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,
high precision, smooth and steady running. Adopt imported precision
ball screws, tools feeded with more accuracy.
3. Large power 3.5kw China air cooling spindle which is with stable performance, powerful and high torque,
matched with high-performance frequency inverter.
4. China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y
axis with traveling speed up to more than 25000mm/min.
5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.
6. PCI NcStudio control system, connect with the desktop computer, showing the processing path and
estimate the processing time, more convenient and easy to operate.
7. With computer cabinet, keeping computer cleaning.
8. Auto lubrication system more convenient for maintenance.
9. Auto tool calibration, more convenient for each time Z-axis 0 point setting.
10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit
protection function which can stop the mechanical collision due to
unproper size given to the design.
11. With the function of Break-point memory, power failure resuming and automatic
home/orgin correction function, effectively ensure long time working precision.
Technical Parameters
| Effective working area | 1300(X)mm*2500(Y)mm*200(Z)mm |
| Materials | More thickness steel pipe welded machine holder bed, cast iron
gantry |
| Working table | Aluminum T slot working table |
| Moving type | Gantry moving |
| Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
| Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |
| Driving mode | Stepper motor (86BYGH450B) and driver for XYZ-axis |
| Spindle motor | 3.5kw air cooling |
| Spindle speed | 0-24000rpm |
| Collets type | ER25 |
| Inverter | Sunfar |
| Voltage | AC 220V+ 10%, 50/60Hz, single phase or AC 380V+ 10%, 50/60Hz, three phases |
| Traveling speed | >25000mm/min |
| Engraving speed | >12000mm/min |
| Machine accuracy | 0.03mm |
| Control system | PCI NcStudio control system ( for desktop computer, windows XP/7) |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Lubrication system | Auto |
| Tool calibration | Auto |
| Certificate | CE |
Reference Parts Photos
3.5kw air cooling spindle
Auto lubrication and auto lubrication system

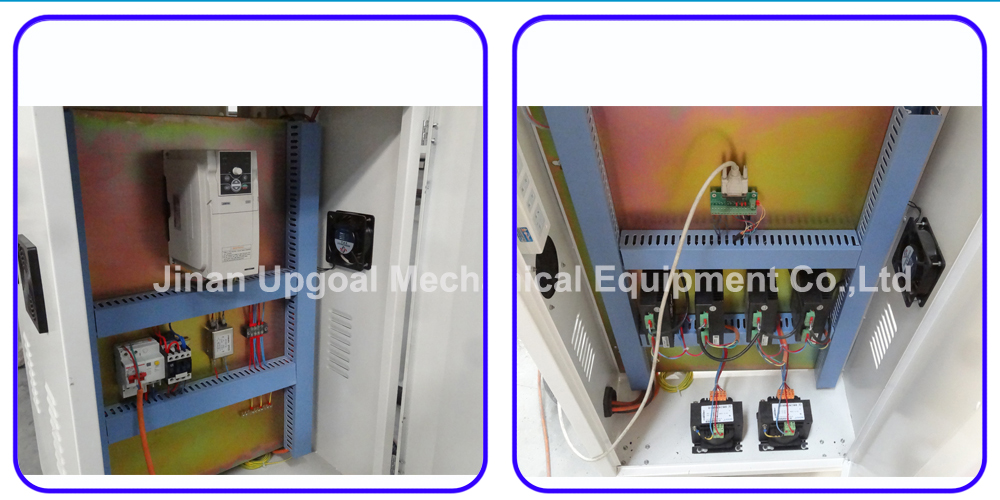

Control cabinet
