Gavestone Head Photo Co2 Laser Engraving Machine for Surface Photo
Engraving
Application
Application industry: Marble engraving, Advertisement, Gift
Package, Model.
Application Materials: Acrylic,crystal, marble, wood, paper, cloth,
leather, rubber, glass, ceramic tile.
Features
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser
power convert ratio.
Laser Tube
Adopted high quality Reci S2 ( rated power 90W, maximum power 100W) Co2 laser tube, long working time time and stable
Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect
and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting
quality
Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure
stable power transference.
Motion System
Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port RuiDa RDC 6442S DSP control system with large inner memory device and Fast curve cutting and
Optimized shortest path function, Greatly improved the working
efficiency .
With WIFI connection function, no need to use USB cable, convenient and improving working
efficiency.
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The
High speed motion control program with pre-buffering function
enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs
directly exporting. With advanced Color management and defining the
working turns with different colors , All or a part work can done
in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5000, ensuring the laser tube long time continus working.
Technical parameters
| Effective working area | 900*600mm |
| Laser Type | Co2 sealed-off laser tube |
| Laser tube power | Reci S2( rated power 90W, maximum power 100W) |
| Working table | Honey comb with less knife trip |
| Lifting table | Automatic up and down, 300mm |
| Driver mode | 3 phases stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | RuiDa RDC6442S |
| Control software | RDWorks V8( no need softdog) WIFI connection function |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Industrial chiller CW-5000 cooling |
| Water protection system | Yes |
| Focus | Auto focus |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Voltage | AC220V +10% 50/60Hz, single phase or AC 110V+10% 50/60Hz, single phase |
| Certificate | CE/FDA |
Reference Parts Photos
Laser head

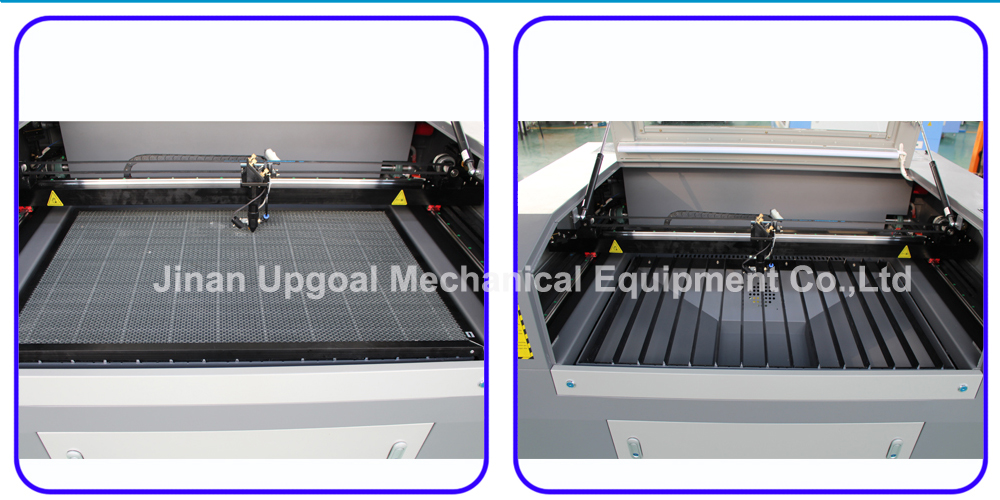

Honey comb and knife strip double working table, auto lifting table
Auto focusing switch
Reci S2 Co2 laser tube
Industrial chiller CW-5000 cooling, air pump & air blower for
blow-off
RuiDA DSP offline control panel

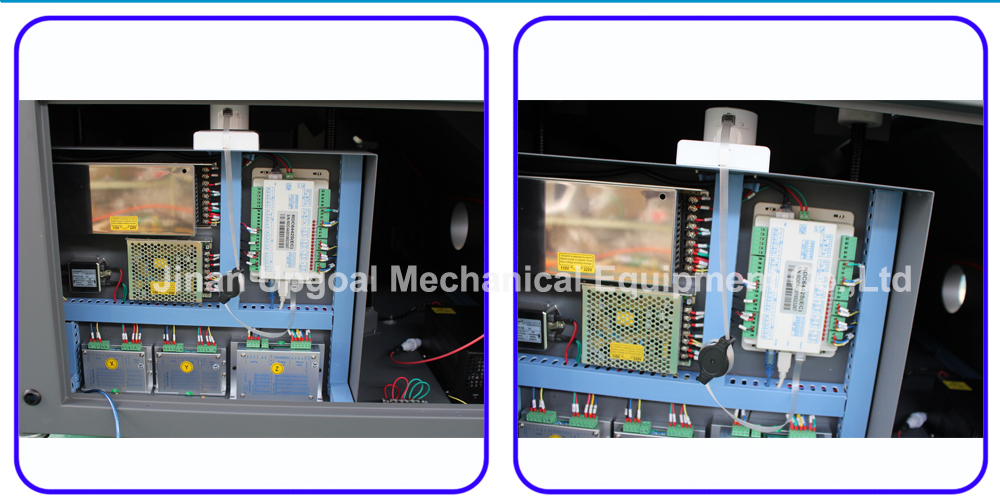

Control cabinet & RuiDa WIFI router
Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=nR1ev57j99c
For more information, just feel free to contact us!
Jinan Upgoal Mechanical Equipment Co.,Ltd
Supplying & Servicing for CNC Router/Laser Engraving Cutting
Machine/Plasma Cutting Machine/Marking Machine/CNC Wood Lathe
