Portable Type Plasma Flame Cutting Machine with 1500*2500mm Working
Area
Application
Suitable for all kinds of large, medium and small factories and
mines, widely used in automobile, shipbuilding, engineering
machinery, etc. Suitable for carbon steel, stainless steel and
nonferrous metal cutting.
Features
1.7-inch 800 * 600 high-resolution 16 million color of the color LCD
screen, user-friendly interface, full Chinese / English menu,
optimization steps, have operation marks on the bottom of the
screen , flexible and efficient, easy to learn.
2.Supporting EIA code (ie, G-code) and FastCAM and other nesting software; Chinese/English menu, for various domestic and international
operators.
3.Comes with 45 kinds of commonly used graphics library (including a grid pattern), you can manually set the sheet size
and hole size, cutting directly without programming.
4.32-bit high-performance CPU, using real-time multitasking and high speed DSP control
technology, high-precision interpolation control technology,
working high stability, high-speed operation, low noise.
5.Universal U disk transfer G code file (cutting path file), and upgrading transfer system, the system
features updating timely, convenient and quick.
6.256M large storage space, can store more than 5000 complex shaped cutting files; meet
operation and processing of complex program, run easily handle
large programs.
7.Pattern at any angle rotation, scaling, X or Y mirroring, arranged in a matrix, idling, can be
manually selected row and Pick other daily operations of the
utility function.
8.According to plate thickness, the corner can automatically limit, effectively prevent
over-burning. Support cutting edge and the offset cutting, reduce
warm-up time of thick steel plate to , and avoid waste due to the
discharge sheet calculation errors caused.
9.Graphics zoom in / out, zoom under state real-time tracking cutting point. Customize all
input and output port type (normally open or normally closed) and
number.
10.Self-diagnostic system to all IO status and key state to facilitate the inspection and troubleshooting.
Alone or in bulk import and export procedures, parameters, backup
and restore, date, week, clock display.
11.Support for oxyfuel, plasma and demo mode; various processing parameters complete to meet different process
requirements.
12.Oxyfuel and plasma separated IO control; automatic increase oxygen gas, two warm-up, three perforation;
plasma arc voltage feedback, position feedback, automatically turns
off the corner arc voltage height.
13.Power failure and breakpoint data storage and recovery, return function, emergency stop button, not automatically
restored to the state before the power failure, effectively prevent
misuse.
14.High subdivision stepper motor with high drive segments, low
noise, high precision, stable operation.
15. The maximum cutting speed is adjustable to 3.5 meters per minute, to meet the needs of rapid plasma cutting.
16.Automatic cutting compensation, shift torch, torch perforated stay, warm-up time intelligent
memory, keyboard diagnosis, temperature-controlled fan. Standard
electric height adjustment and universal torch clamp.
17.Stability, high frequency plasma with superior anti-jamming capability.
18.Control cabinet is all-steel chassis magnetic structure, completely shielding
electromagnetic radiation, real-jamming, anti-static.
19.U-disk upgrade system upgrade, convenient and simple, practical, and provide lifetime free
upgrade service.
20.Unique plate correction, the correction can be used as any steel side edge.
21.The graphics can be arranged in a matrix, alternately arranged, stacked arrangement.
22.The workpiece size and the original size at the same time with a slotted display, easy and intuitive.
23.Plasma arc voltage control with speed and distance two options when closing arc voltage
height ways to make the machine more balanced, safe.
24.The maximum number of rows in the program.
Reserve power plasma cutting machine interface, optional various plasma cutting machine model, the arc voltage
and the initial positioning system tracking device.
Technical Parameters
| Model | UG-1525P |
| Effective cutting area | 1500*2500mm( Length * width) |
| Guide rail size | 3000x273x60mm( Length * width * thickness) |
| Rail bearing number | 2 |
| Rail bearing size | 500×80×40mm( Length * width * thickness) |
| Cutting method | Plasma & Oxygen + propane or acetylene |
| Cutting speed | 0-3500mm(at maximum 4000mm) |
| Cutting thickness | Plasma: 16mm with 100A HUA YUAN IGBT plasma power source
Flame: 6-300mm( Oxygen + propane or acetylene) |
| Running precision | ±0.2mm/m |
| Cutting torch | Plasma & flame |
| Machine head weight | 19kg |
| Gas pressure Mpa | At maximum 0.1 |
| Oxygen pressure Mpa | At maximum 0.7 |
| Power supply | AC 380V+10%, 50/60Hz, three phases |
Reference Parts Photos
FangLing control system
STARTFIRE THC( torch height control system)
Stepper motor & power plug
HUAYUAN plasma power supply 100A

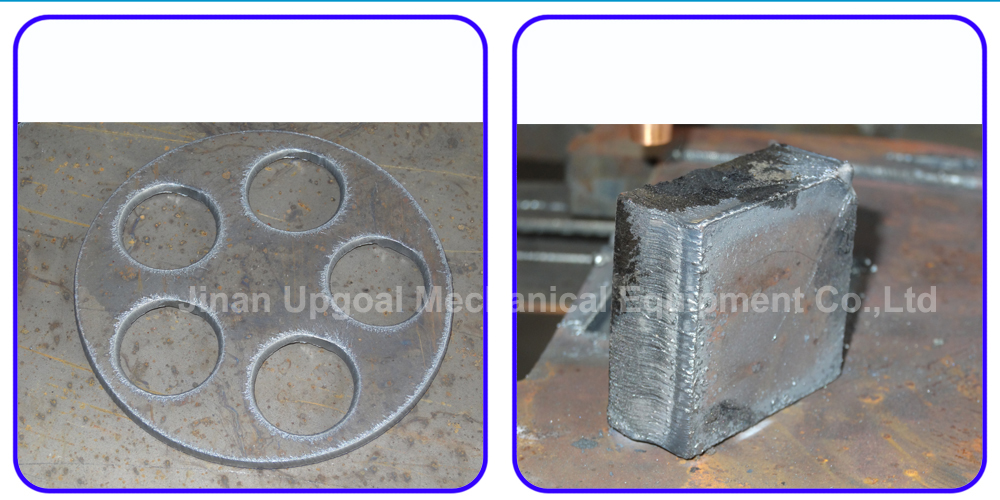

Plasma & flame cutting sample
Reference Samples
Reference working videos
https://www.youtube.com/watch?v=hoyX4giarus
https://www.youtube.com/watch?v=3BG47s7TGxE
For more information, just feel free to contact us!
Jinan Upgoal Mechanical Equipment Co.,Ltd
Supplying & Servicing for CNC Router/Laser Engraving Cutting
Machine/Plasma Cutting Machine/Marking Machine/CNC Wood Lathe!
