    Portable Fiber Laser Marking Machine for Metal Materials Marking

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-20FM
    Certification : CE
    Price : USD 3000-USD4000 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 200 sets/month
    Delivery Time : Within 7 working days
    • Product Details
    • Company Profile

    Portable Fiber Laser Marking Machine for Metal Materials Marking

    Portable Fiber Laser Marking Machine for Bearing Marking


    Application


    Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component, hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters’s, marking, mass production, marking clear and beautiful, never disappear.


    Features


    1. Whole machine small volume, just like a desktop computer size, is the smallest laser machine in the world right now, so named as portable fiber laser marking machine.


    2. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.


    3. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.


    4. Marked graph and characters is permanent , will not regression due to friction.


    5. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 500W


    6. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.


    7. Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can use SHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.


    8. Integrated modularization design, easy maintenance, compact size, save the workshop space.


    Technical Parameters

    Maximum output laser power20W, Raycus
    Wave length of laser1064nm
    Marking scope110*110mm
    Laser sourcesFiber module
    Laser HeadHigh speed scanning head
    The minimum focus facula diameter20μm
    Minimal character0.01mm
    Control systemOriginal Ez cad controller with USB port
    Marking depth0.01-5mm( depends on different materials)
    Marking line width0.01-0.1mm
    Marking speed≤7000mm/s
    Laser repetition frequency20kHz~80kHz
    Cooling methodForce-air Cooling
    Power supplyAC 220V ±10%50/60Hz, single phase
    Support formatPLT, BMP, DXF, JPG, TIF, AI etc
    Process MaterialAll kinds of metal and part of Non-metal Materials
    CertificateCE

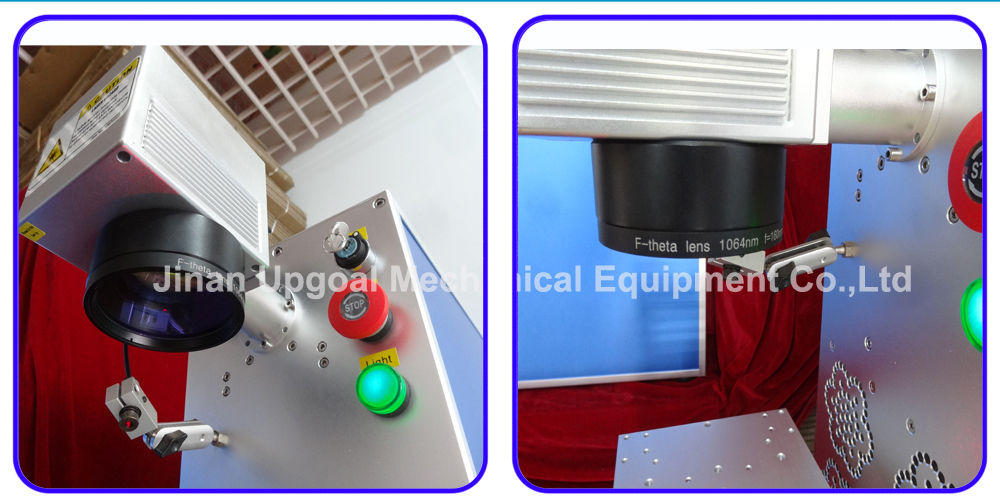

    Reference Parts Photos

    Original EzCad control system


    Two-dimension working table


    Scanning head

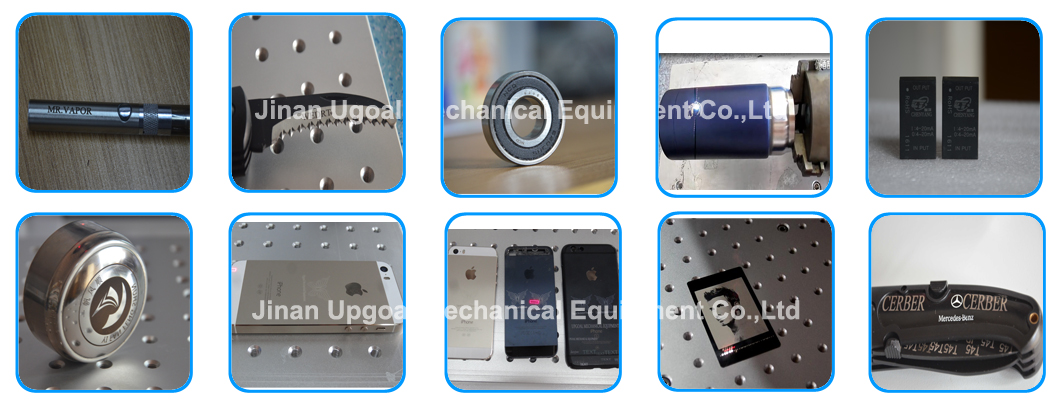

    Reference Sample Photos


    Reference working videos


    https://www.youtube.com/watch?v=CX2fFTF0Re4&index=2&list=PLZ2SG5kTfvfMxiizViKGOCVDaBm-0mBJG


    For more information, just feel free to contact us!
