Economic 2030 Big CNC Router CNC Carving Machine With Vacuum Table
Application
Woodworking products, advertising signs, MDF board, cutting
engraving Photo frame, sculpture the sofa and the head of a bed,
All kinds of wood door carvings, Large furniture relief engraving,
Dalle hollow out and simple copper aluminum plastic board, etc
Features
1. Welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron
Gantry, the structure is strong and stable.
2. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide
block which ensure high weight capacity, high precision, smooth and
steady running. Adopt imported precision ball screws, tools feeded
with more accuracy.
3. Large power 3.2kw cooling spindle which is with stable performance, low noise and high torque, matched with high-performance
Frequency Inverter.
4. China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y axis
with traveling speed up to more than 25000mm/min.
5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving
cost. Z- axis with precision ball screw, high precision and more
durable.
6.PCI NcStudio control system, connect with the desktop computer, showing the processing path
and estimate the processing time, more convenient.
7. Vacuum adsorption system with 5.5kw air cooling vacuum pump, vacuum table which is divided into 6 zones, can adsorb different
size materiel from small to big, saving materials load-unloaded
time.
8. Semi-auto lubrication system more convenient for maintenance.
9. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit
protection function which can stop the mechanical collision due to
unproper size given to the design.
10. With the function of Break-point memory ,power failure resuming and
automatic home/orgin correction function, effectively ensure long time working precision.
Technical Parameters
| Effective working area | 2000(X)mm*3000(Y)mm*200(Z)mm |
| Materials | More thickness steel pipe welded machine holder bed, cast aluminum
gantry |
| Working table | Vacuum table with aluminum T slot working table |
| Moving type | Gantry moving |
| Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
| Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |
| Driving mode | Stepper motor (86BYGH450B) and driver for XYZ-axis |
| Spindle motor | 3.2kw water cooling |
| Spindle speed | 0-24000rpm |
| Inverter | Sunfar |
| Voltage | AC 220V+ 10%, 50/60Hz, single phase or AC 380V+ 10%, 50/60Hz, three phases |
| Traveling speed | >25000mm/min |
| Engraving speed | >12000mm/min |
| Machine accuracy | 0.03mm |
| Control system | PCI NcStudio for desktop computer |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Lubrication system | Semi-auto |
| Tool calibration | Auto |
| Certificate | CE |
Reference Parts Photos
Vacuum table with aluminum T slot
Cast alimimum gantry
3.2kw water cooling spindle and lead ball screw transmission for
Z-axis

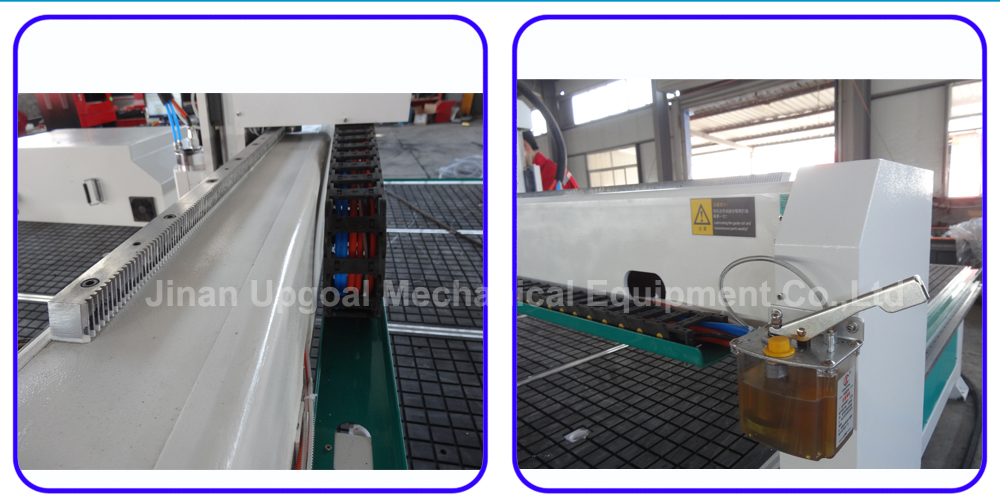

Helical rack and pinion transmission for XY-axis, semi-auto
lubrication
Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=CYMiZ6H2cPk&list=PLZ2SG5kTfvfMdMhdO-MbVH4IDtNuOyEHG&index=2
https://www.youtube.com/watch?v=7ufbVmvVDj8&list=PLZ2SG5kTfvfMdMhdO-MbVH4IDtNuOyEHG&index=1
For more information, just feel free to contact us!
