Application

Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.

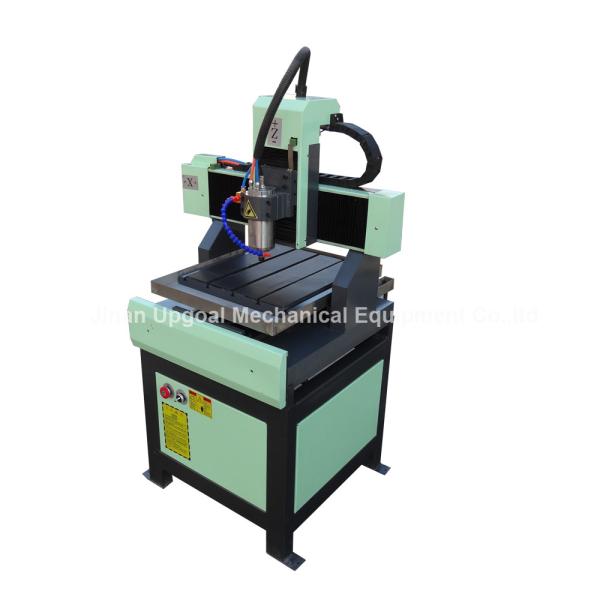

Features

1. Cast Iron as a whole with Vrbration Temper aging treatment ensures no deformation for long time.

2. Cast iron Working Table with Plaform moving type. Duarable without deformation enable postioning more precisionly.

3. Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precison.

4. Three axis with precision ball screw transmission ensure the engraving speed and accuracy.

5. High variable speed 2.2KW water cooling spindle, big torque, longer life, strong cutting ability and continous work for long time.

5.Powerful stepper motor and driver for XYZA-axis, compared with the stepper motor, ensuring high speed and precision working.

6. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adpot high quality electornic parts, minimizig fault rate.

7. Stainless steel water slot cooling system, ensuring the cooling for the metal & hard materials.

8. DSP offline control system with USB interface which is completely off from Computer. More Humanized desgin with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle startup and stop automatically.

9. With the fucntion of Break-point memory ,power failure resuming and automatic home/orgin correction function.Effectively ensure long time working precision.

10. Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation fucntion. Variable Speed is suitable for varisou materials and industry.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection fucntion which can stop the mechanical collision due to unproper size given to the design.

Technical Parameters

Reference Sample Photos

Reference Working Videos

https://www.youtube.com/watch?v=wuwFdSIr5SY&list=PLZ2SG5kTfvfPU_-gmIjHFaRJU8EWgTm3I&index=4

For more information, just feel free to contact us!
