Application

A variety of fabrics can be cut into any graphics precisely which can be made into Sofas, tents, umbrellas, clothing, leather, soft cloth (cloth, leather, plush), car interior (seat covers, floor mats, cushion.

Features

CCD camera system

1. Imported Japan 5 million pixel high precision identification system, specially suitable for automatically material identify positioning cutting.

2. Has the feature of positioning continuous cutting, automatically draw the outline and then cutting, ensuring the whole material high speed & high precision cutting.

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted famous Reci S2 Co2 laser tube, rated power: 90W, peak power: 100W, long time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Beam Path System

Adopting imported focus lens with high luminous and mirror with high reflection ensure stable power transference.

Motion System

Imported High precision,low friction force and stand wear and tear guide rails and blocks with 3M belt ensured stable transmission, lower noise.

Operation System

Specialized Leetro MPC6595C2 CCD control system, advanced USB port DSP control system with large inner memory device and Fast curvilinear cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pee-buffering function enhances productivity more.

Speciallized Visual positioning laser cutting control system for fabric logo /outline cutting with Leetro MPC6595C2 CCD control system

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the desgins directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-3000, ensuring the laser tube long time continus working

Technical parameters

Reference Parts Photos

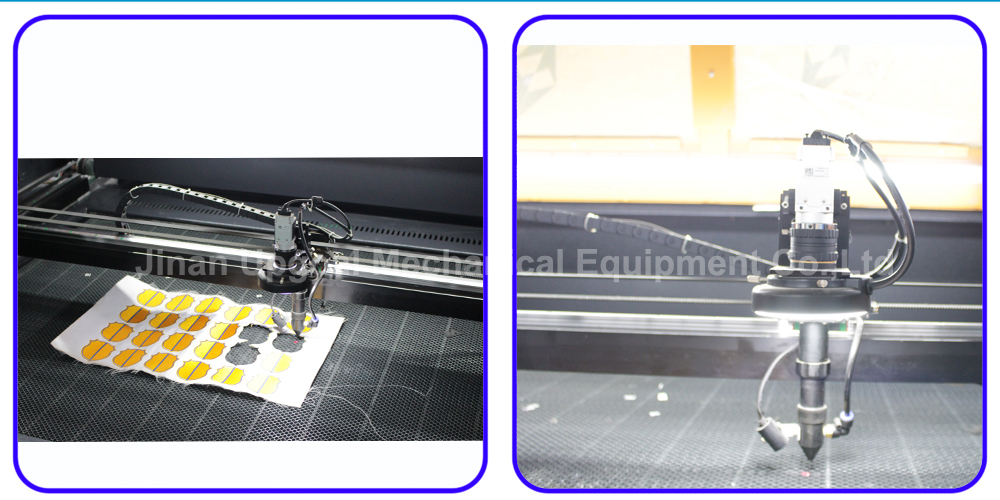

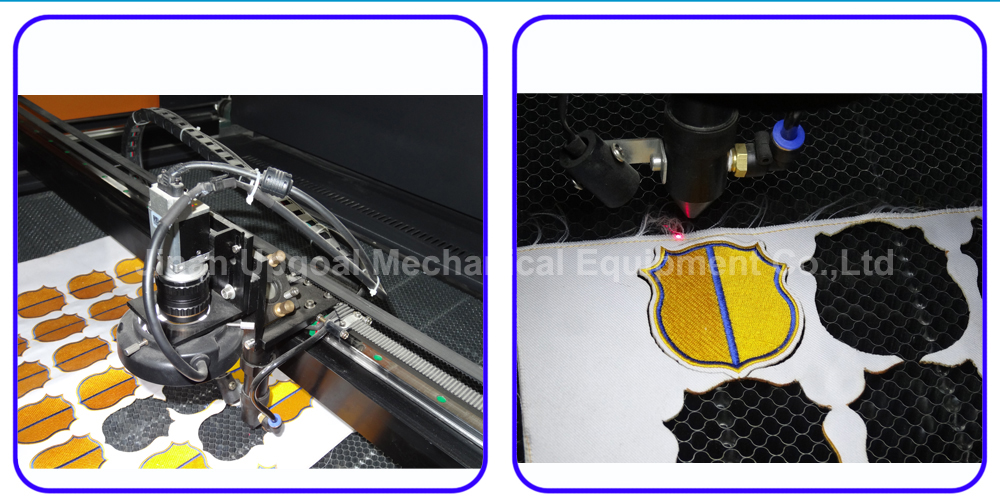

CCD camera

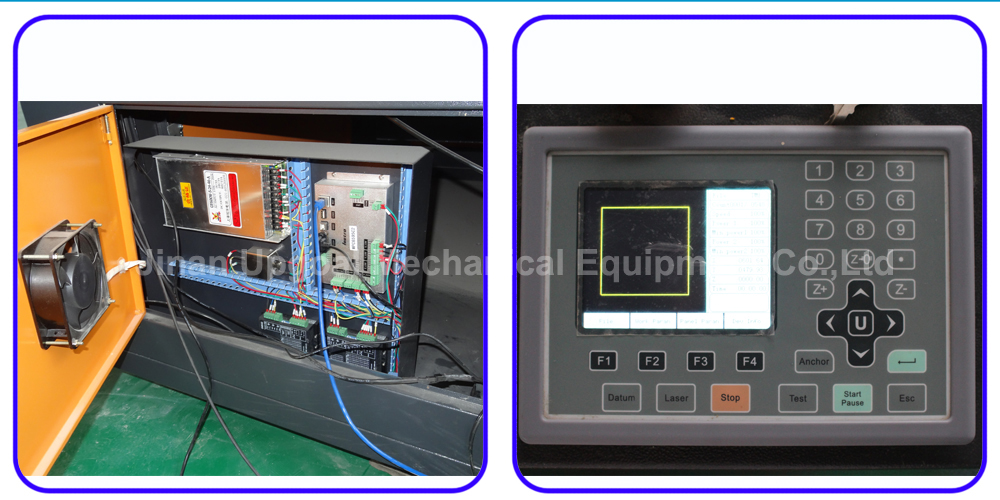

Control cabinet & Leetro MPC6595C2 control panel

Reference Sample Photos

Reference Working Videos

https://www.youtube.com/watch?v=y63CULAfzeI

For more information, just feel free to contact us!
