Stone Photo Co2 Laser Engraving Machine 1200*900mm
Application
Application industry: Marble engraving, Advertisment, Gift Package,
Model.
Application Materils:Acrylic,crystal, marble, wood, paper, cloth,
leather, rubber, glass, ceramic tile.
Features
Separated Structure
Upper and lower separation design. The Upper parts can be taken down and set up onto the stone as solution for heavy stones while materials loading difficulties
and platform load bearing is limited.
Manual Lifting Handle
Distance between the two parts can be adjusted which is Much more convenient for thicker materials
processing
Laser Head
Newly desgin, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser
power convert ratio.
Laser Tube
Adopted famous Reci S2 Co2 laser tube, rated power: 90W, peak power: 100W, long time time and stable
Working Table
Honey Comb Table: applicable to variosu soft materials with Good adsorption effect
and low reflection ratio.
Up-Down Table:Maxmum Loading 50kgs with 300mm up-down distance.
Beam Path System:
Adopting imported focus lens with high luminousness and mirro with high reflectivity ensure
stable power transference.
Motion System
Imported High precison,low friction force and stand wear and tear linear square guide rails and blocks with 3M beltensured stable transimission, lower noise
Operation System
Advanced USB port Leetro DSP control system with large inner memory device and Fast curvilinear cutting and
Optimized shortest path function, Greatly improved the working
efficency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The
High speed motion control programm with pre-buffering function
enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the desgins directly
exporting. With advanced Color management and defining the working
turns with different colors , All or a part work can done in one
time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5000, ensuring the laser tube long time continus working
Technical parameters
| Effective working area | 1200*900mm |
| Laser Type | Co2 sealed-off laser tube |
| Laser tube power | S2 series, Reci, Beijing (Rated power: 90W, max. Power: 100W) |
| Working table | Honey comb |
| Driver mode | 3 phases stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | Leetro MPC6585 |
| Control software | LaserCut 6.1 |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Industrial chiller, CW-5000 cooling |
| Water protection system | Yes |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Biggest scanning accuracy | 2500DPI |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Voltage | AC 220V+10% 50/60Hz, single phase |
| Certificate | CE/FDA |
Reference Parts Photos
Honey comb working table with less knife strip supporting
Laser head

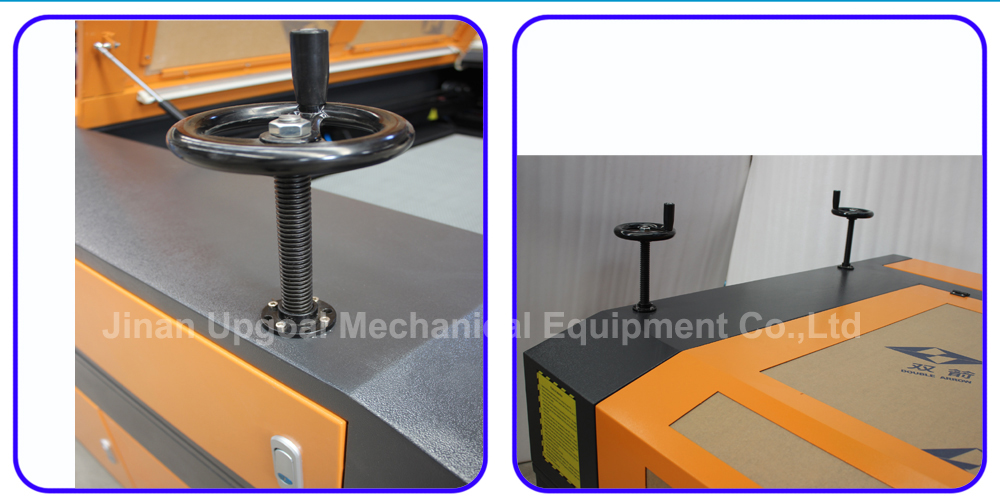

Manual lifting handwheel
