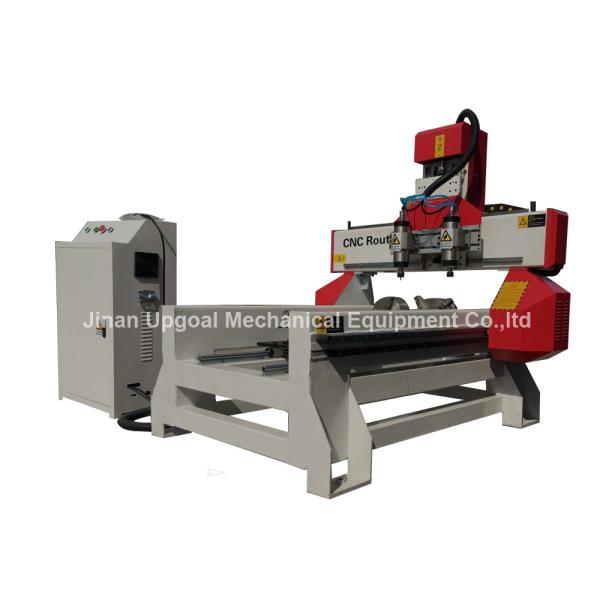

500*1000mm Flat Cylinder CNC Carving Machine with 2 Spindles 2 Rotary Axis

Application

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc

Features

1. Welded steel T type structure as a whole with virbration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

2. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block wich ensure high weight capacity, high precision, smooth and steady running. Adpot imported precision ball screws, tools feeded with more accuracy.

3. 2.2KW water cooling spindle which is with stable performance, low noise and high torque, matched with high-performance Frequency inverter. 2 pcs structure, each time can process 2 same items, improving the efficiency.

4. China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

5. Helical gears pinion with racks type transmission for X and Y axis, higher running speed and efficency, saving cost. Z- axis with precision ball screw, high precision and more durable.

6.DSP offline control system with USB interface which is completely off from Computer. More Humanized desgin with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of curve and straight line, more perfect curve working and Spindle startup and stop automatically.

7. With underlying 2 pcs rotary axis diameter 200mm, working length 1000mm, for cylinder engraving, underlying type, no need increasing the Z-axis height, ensuring the machine stability, and also no need install & unstall each time, saving labor and time.

8. Removable aluminum T slot working table 500*1000mm, let the machine not only for cylinder processing, but also for flat engraving, multifunctional!

9. Semi-auto lubrication system more convenient for maintenance.

10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection fucntion which can stop the mechanical collision due to unproper size given to the design.

11. With the function of break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.
