Small Jade CNC Engraving Machine with DSP Offline Control
Application
Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising
plate, Led Lamp.
Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate,
Mdf, Cristal plate, artifical marble and other metal and non-metal
materials.
Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.
Features
1. Whole cast iron materials, with good rigidity and stable.
2. With platform moving type, stable and durable for long time using. Ensure high positioning
accuracy.
3. XYZ three axis are with Hiwin Linear square guide rail and block. Ballscrews transimission for all axis. Durable running with Higher
accuracy.
4. Large Power 2.2kw water cooling spindle which is applicable not only for cooper plate, aluminum plate,
iron plate engraving but also for wood working. It can cut 20-30mm
thickness acrylic by one time cutting. The fine engraving is more
smoothy and clear by large power spindle.
5. Dust-Proof desgin for XZ-axis, protect the guide rail and gears pinon racks from the
Dust&Dirt, help to ensure machien working performance.
6. Stainless steel water slot cooling system, ensuring the processing hard metal & stone.
7. DSP offline system, when working no need use computer, just use DSP control cnc router
working, easy to operate and more convenient.
8. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adpot high quality electornic
parts, minimizig fault rate, Adopt high flexiable cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.
9.With the function of break-point memory ,power failure resuming and
automatic home/orgin correction function. The Working can be resumed afer unexpected situations or next
day.effectively ensure long time working precision.
10. Working Pause, speed adjust, working depth adjust at any time while
working. Preview the 2D&3D working result With simulation fucntion.
Variable Speed is suitable for varisou materials and industry.
11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection fucntion which can stop
the mechanical collision due to unproper size given to the design.
Technical Parameters
| Effective working area | 300(X)mm*300Y)mm*150(Z)mm |
| Materials | Whole cast iron materials |
| Cooling system | Stainless steel water slot cooling system |
| Working table | Aluminum alloy T Slot with PVC protection layer |
| Moving type | Platform moving |
| Guide rail | Linear square guide rail, Hiwin, Taiwan |
| Transmission | Lead ball screw for XYZ-axis |
| Driving mode | Stepper motor and driver for XYZ-axis |
| Spindle motor | 2.2kw water cooling |
| Spindle speed | 0-24000rpm |
| Inverter | Sunfar |
| Voltage | AC 220V+ 10%, 50/60Hz, single phase or AC 380V ± 10%,50/60Hz, three phases |
| Traveling speed | >8000mm/min |
| Engraving speed | >6000mm/min |
| Machine accuracy | 0.03mm |
| Control system | DSP offline A11E |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Tool calibration | Auto |
| Certificate | CE |
Reference Parts Photos

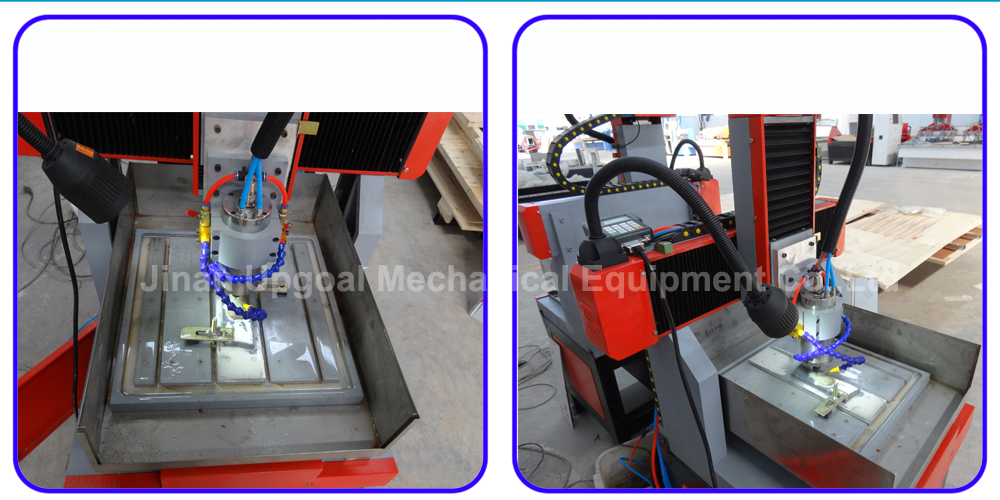

Stainless steel water slot cooling system & DSP offline control
system
Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=GHWgbTV1vQc&list=PLZ2SG5kTfvfMxCU76J-vND4BerDV3CRyE&index=5
