Double Heads 400*400mm Metal Wood Stone CNC Engraving Machine with
DSP Control
Application
Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising
plate, Led Lamp.
Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate,
Mdf, Cristal plate, artifical marble and other metal and non-metal
materials.
Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.
Features
1. Cast iron structure. Stable running with less vibration.
2. With Platform moving type, stable and durable for long time using. Ensure high positioning
accuracy.
3. XYZ three axis are with Hiwin Taiwan linear square guide rail and block. Ball screws transimission for all axis. Durable running with
Higher accuracy.
4. 2 Independnet Z-axis with 1.5kw water cooling spindle with adjusted
calibration fixtures on one Z-axis, each time can processing 4 pcs, much imporving the
efficiency. The fine engraving is more smoothy and clear by large
power spindle.And, spindle with adjusting fixing holder, more convient for each spindle 0 point setting.
5. Dust-Proof desgin for XZ-axis, protect the guide rail and gears pinon racks from the
Dust&Dirt, help to ensure machien working performance.
6.DSP offline control system with USB interface which is completely off from computer. More Humanized design with
Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of
motors. Enable high processing speed, synchronization of curve and
straight line, more perfect curve working and Spindle startup and
stop automatically.
7.Stainless steel water slot cooling system, ensuring the processing for metal/stone such hard materials.
8. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adpot high quality electornic
parts, minimizig fault rate, Adopt high flexiable cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.
9.With the function of Break-point memory ,power failure resuming and
automatic home/origin correction function. The Working can be resumed afer unexpected situations or next
day.effectively ensure long time working precision.
10. Working pause, speed adjust, Working depth adjust at any time while
working. Preview the 2D&3D working result With simulation fucntion.
Variable Speed is suitable for varisou materials and industry.
11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection fucntion which can stop
the mechanical collision due to unproper size given to the design.
Technical parameters
| Effective working area | 400(X)mm*400Y)mm*200(Z)mm |
| Materials | Square steel tube machine holder, cast iron machine bed&working
table*gantry |
| Working table | Cast iron T slot working table |
| Moving type | Platform moving |
| Guide rail | Linear square guide rail, Hiwin, Taiwan |
| Transmission | Lead ball screw for XYZ-axis |
| Driving mode | Stepper motor and driver for XYZ-axis |
| Spindle motor | 1.5kw water cooling, 2 pcs |
| Spindle speed | 0-24000rpm |
| Inverter | Sunfar |
| Voltage | AC 220V±10%, 50/60Hz, sinle phase |
| Traveling speed | >8000mm/min |
| Engraving speed | >6000mm/min |
| Machine accuracy | 0.03mm |
| Control system | DSP offline control,A11E |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Tool calibration | Auto |
| Certificate | CE |

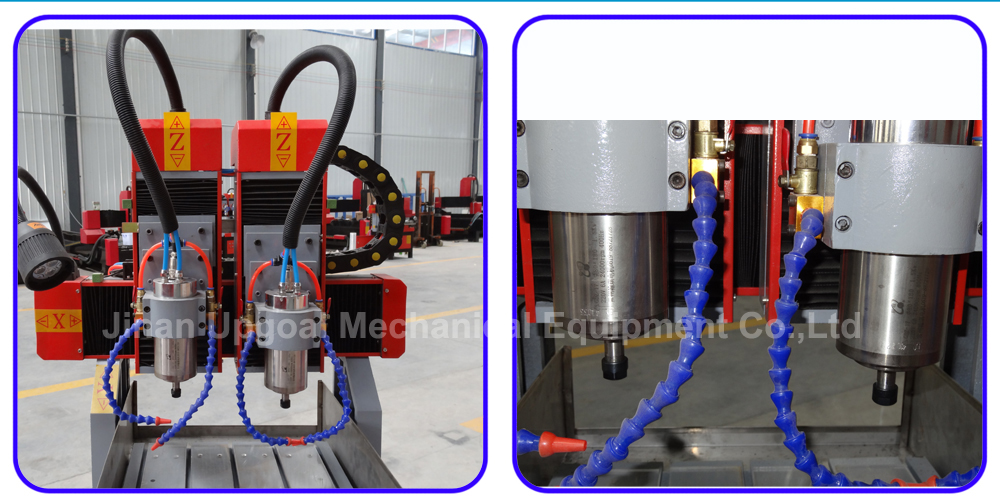

2 pcs 1.5kw water cooling spindle
Stainless steel water slot cooling
Stainless steel water slot

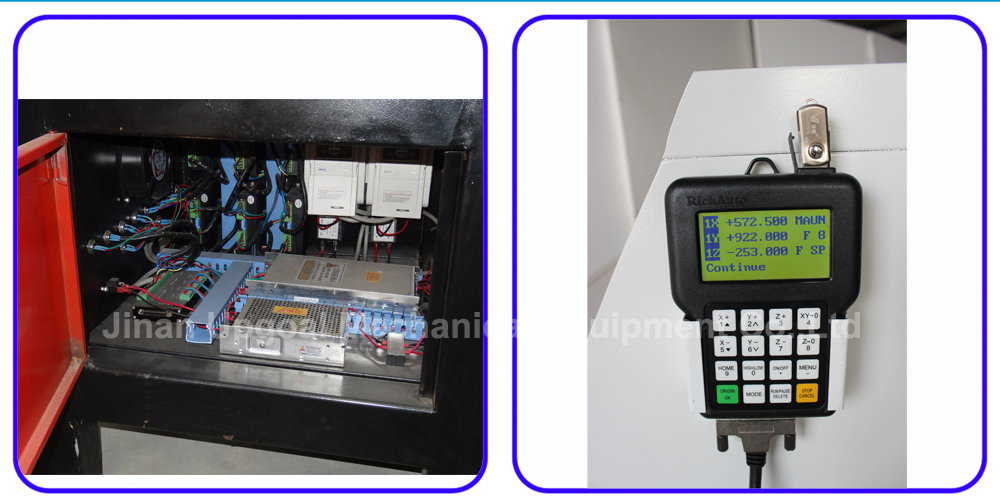

DSP A11E offline control system
