3 Heads 3 Rotary Axis Wood Metal Stone CNC Engraving Cutting
Machine
Application
Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising
plate, Led Lamp.
Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate,
Mdf, Cristal plate, artifical marble and other metal and non-metal
materials.
Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.
Features
1. Cast iron lathe bed. Stable Running with less Vibration.
2. With Gantry moving type, stable and durable for long time using. Ensure high positioning
accuracy.
3. XYZ three axis are with Hiwin Taiwan linear square guide rail and
block. Ball screws transmission for all axis. Durable running with Higher
accuracy.
4. 3 pcs 1.5kw water cooling spindle with adjusted calibration
fixtures on one Z-axis, each time can processing 4 pcs, much imporving the
efficiency. The fine engraving is more smoothy and clear by large
power spindle.
5. 3 pcs rotary axis, diameter 80mm, working length 1200mm, for cylinder processing.
6. Stainless steel water slot cooling system, ensuring the processing hard metal & stone.
7. Dust-Proof desgin for XZ-axis, protect the guide rail and gears pinon racks from the
Dust&Dirt, help to ensure machien working performance.
6. PCI NcStudio control system, connect with the desktop computer, showing the processing path
and estimate the processing time, more convenient.
7 Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adpot high quality electornic
parts, minimizig fault rate, Adopt high flexiable cable and
imported electronic parts, electrical design of whole machine is
complied with the CE standard.
8.With the function of Break-point memory ,power failure resuming and automatic home/orgin
correction function. The Working can be resumed afer unexpected situations or next
day.effectively ensure long time working precision.
9. Working Pause, Speed adjust, Working depth adjust at any time while
working. Preview the 2D&3D working result With simulation fucntion.
Variable Speed is suitable for varisou materials and industry.
10. Favorable compatibility with Varoius Cam softwares such as
Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection fucntion which can stop the
mechanical collision due to unproper size given to the design.
Technical parameters
| Effective working area | 900(X)mm*1200(Y)mm*150(Z)mm |
| Materials | Square steel tube machine holder, cast iron machine bed,cast
aluminum gantry |
| Working table | Aluminum alloy T Slot with PVC protection layer |
| Moving type | Gantry moving |
| Guide rail | Linear square guide rail, Hiwin, Taiwan |
| Transmission | Lead ball screw for XYZ-axis |
| Driving mode | Stepper motor and driver for XYZ-axis |
| Spindle motor | 1.5kw water cooling, 3 pcs |
| Spindle speed | 0-24000rpm |
| Inverter | Sunfar |
| Voltage | AC 220V+ 10%, 50/60Hz, sinle phase |
| Traveling speed | >8000mm/min |
| Engraving speed | >6000mm/min |
| Machine accuracy | 0.03mm |
| Control system | PCI NcStudio( for desktop computer, windows XP/7) |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Rotary axis | 3 pcs, diameter 80mm, working length 1200mm, reduction gear
transmission |
| Tool calibration | Auto |
| Certificate | CE |
Reference Parts Photos
3 pcs rotary axis, diameter 80mm, working length 1200mm, reduction
gear transmission

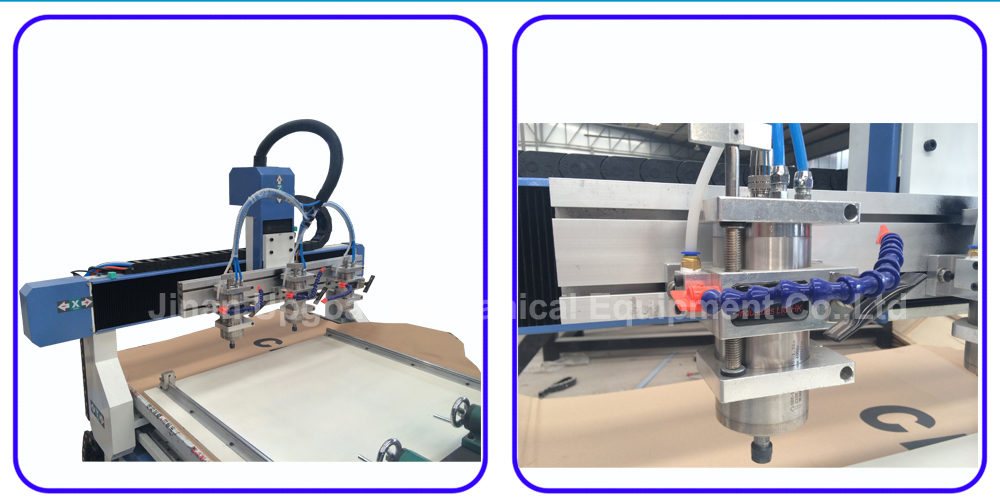

3 pcs 1.5kw water cooling spindle with adjusting fixtures for 0
point calibration
Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=SMNtT5xF-0A&index=2&list=PLZ2SG5kTfvfNPAYz6owcFJqKwjT4Nt_p9
For more information, just feel free to contact us!
