New Double Z-axis Double Heads Stone CNC Carving Machine with Steel
Table
Application
Mainly used for natural marble, granite, artificial stone,
tombstone, milestone, tile, glass, bluestone,sandstone, crystal,
microlite,mural, village tablet inscription, decoration skirting
line,...such relief engraving, singlet line, character, flat
pattern engraving, with rotary axis, can for stone cylinder,breast
board, handrail, dragon columns,figure of Buddha...engraving.
Features
1. Adopted heavy duty steel machine bed, strong rigidity, strong dynamics, ensuring the machine long time
high speed moving and no deformation. Integrated stainless steel water slot with working table &
machine body more convienient for water collection and circulation.
2. New designed I-shaped steel working table, more better rigidity, stable and long life using than normal
aluminum T slot working table.
3. XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.
4. Heigh precision helical rack and pinion transmission for XY-axis,fast speed and powerful. Z-axis with double nut lead ball screw transmission, good weight capacity and stable moving.
5. Double Z-axis with double powerful 5.5kw water cooling spindle, improving the efficiency,easy to engraving all kinds of stone,
not only fine engraving, but also the bottom smooth and clear.
6. Leadshine hybrid servo motor and driver for XYZ-axis, high precision, faster speed and more stable than stepper motor
and driver. Dual motor and driver for Y-axis, ensuring the stable moving.
7. NcStudio control system, showing the processing path, estiate the processing time, more
convenient.
8. With computer cabinet, more convenient for computer operation and control cabinet
coontroling.
9. Bothway tools cooling system, effectively improve tools life time.
10. Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust
protection, more easy maintenance.
11. Smie auto lubrication sysetem, more convenient and easy for whole machine lubrication.
12. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.
13.Special several processing 0 point saving method.
14. Memory of break point and power failure, ensuring continue working after breaking point or next time
processing.
15. Advanced file processing function, can timely correct faults, and good compatibility for
Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional
curve forcast algorithm, stable broken line, ensuring the curve
moving speed & precision.
Technical Parameters
| Effective working area | 2000(X)mm*2500(Y)mm*350(Z)mm |
| Materials | More thickness T type steel pipe welded machine holder bed, cast
iron gantry |
| Working table | I- shaped steel |
| Cooling system | Stainless steel water slot cooling |
| Moving type | Gantry moving |
| Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
| Transmission | Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis |
| Driving mode | Leadshine hybrid servo motor and driver for XYZ-axis |
| Spindle motor | 5.5kw water cooling, 2 pcs on 2 independent Z-axis |
| Spindle speed | 0-24000rpm |
| Inverter | Sunfar |
| Voltage | AC 380V+ 10%, 50/60Hz, three phases or AC 220V+ 10%, 50/60Hz, single phase or |
| Traveling speed | >28000mm/min |
| Engraving speed | >15000mm/min |
| Machine accuracy | 0.03mm |
| Control system | PCI NcStudio control system |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Lubrication system | Semi-auto |
| Tool calibration | Auto |
| Certificate | CE |
Reference Parts Photos

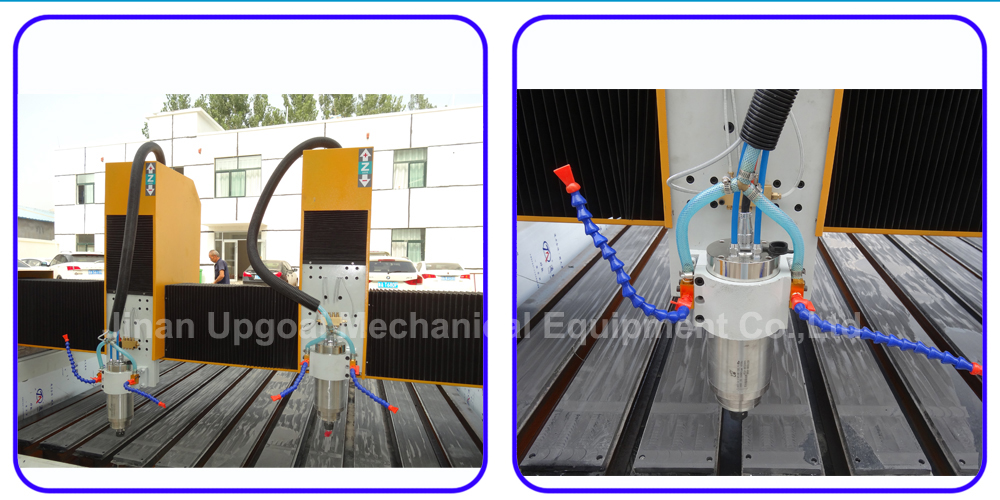

Double Z-axis with double 5.5kw water cooling spindle
I-shaped cast iron working table
Feeding wheels for heavy stone
China Leadshine hybrid servo driver for XYZ-axis
Stainless steel water slot cooling system and semi-auto lubrication
system
Reference Samples Photos
Reference Working Videos
https://www.youtube.com/watch?v=CMk4p_wdiAU&list=PLZ2SG5kTfvfMxCU76J-vND4BerDV3CRyE&index=4
https://www.youtube.com/watch?v=rWCPU8RtI2I&list=PLZ2SG5kTfvfMxCU76J-vND4BerDV3CRyE&index=3
For more information, just feel free to contact us!
