    Heavy Duty Metal Mold CNC Engraving Cutting Machine NcStudio/DSP offline Control 600*600mm

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-6060
    Certification : CE
    Price : USD3000-USD 3340 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 180 sets/month
    Delivery Time : Within 20 working days
    • Product Details
    • Company Profile

    Heavy Duty Metal Mold CNC Engraving Cutting Machine NcStudio/DSP offline Control 600*600mm

    Heavy Duty Metal Mold CNC Engraving Cutting Machine NcStudio/DSP offline Control 600*600mm


    Application


    Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.


    Features


    1.Heavy duty cast iron structure with vibration Temper aging treatment ensures no deformation for long time.

    2.Cast iron Working table with platform moving type. Durable without deformation enable positioning more preciously .

    3.Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.

    4.Three axis with precision ball screw transmission ensure the engraving speed and accuracy.

    5.High variable speed 3.2KW water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.

    6.Leadshine hybrid servo motor and driver for XYZA-axis, compared with the stepper motor, ensuring high speed and precision working

    7.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.

    8.Stainless steel water slot cooling system, ensuring the cooling for the metal & hard materials, improving the processing precision.

    9.Half closed cover design, and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.

    10. Elastic stainless steel Y-axis dust proof and XZ-axis has hard fiber dust proof.

    11. PCI NcStudio control system, connect with the desktop computer, showing the processing path and estimate the processing time, more convenient. or DSP offline control system, when working no need computer, save the files into USB disk, more convenient and easy to operate.

    12.Auto tool calibration, more convenient for operation.

    13.Auto lubrication system, more convenient for machine lubricating.

    14.With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function.Effectively ensure long time working precision.

    15.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

    16.Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

    Technical Parameters

    Effective working area600(X)mm*600Y)mm*200(Z)mm
    MaterialsHeavy duty ast iron machine bed & working table & gantry & Z-axis
    Protection coverHalf cover
    Working tableCast iron with T slot
    Moving typePlatform moving
    Guide railLinear square guide rail ( Hiwin, Taiwan)
    TransmissionLead ball screw for XYZ-axis
    Driving modeLeadshine hybrid servo motor and driver
    Spindle motor3.2kw water cooling
    Spindle speed0-24000rpm
    InverterFuling
    Voltage

    AC 380V± 10%, 50/60Hz, three phases or

    AC 220V±10%, 50/60Hz, sinle phase

    Traveling speed>8000mm/min
    Engraving speed>6000mm/min
    Machine accuracy0.02mm
    Control system

    PCI NcStudio or

    DSP offline control system, RichAuto A11E

    Suitable softwareArtcam, Type3, Ucancam V9,etc
    Carving InstructionsG code *Uoo *mmg *plt HPGL
    Running environment temperature0-45 ℃
    Relative humidity30%-75%
    Cooling systemStainless steel water slot cooling system
    Tool calibrationAuto
    CertificateCE

    Reference Parts Photos

    3.2kw water cooling spindle

    3.2kw water cooling spindle

    Cast iron T slot working table and Elastic stainless steel Y-axis dust proof

    Cast iron T slot working table and Elastic stainless steel Y-axis dust proof

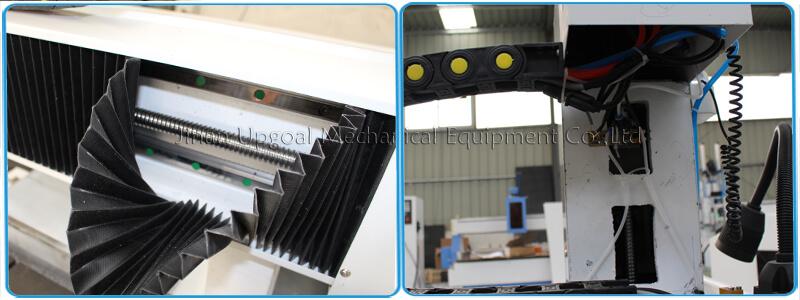

    Hiwin Taiwan linear square guide rail & lead ball screw transmission

    Hiwin Taiwan linear square guide rail & lead ball screw transmission

    PCI NcStudio or DSP offline control

    PCI NcStudio or DSP offline control

    Leadshine hybrid servo motor and driver

    Leadshine hybrid servo motor and driver

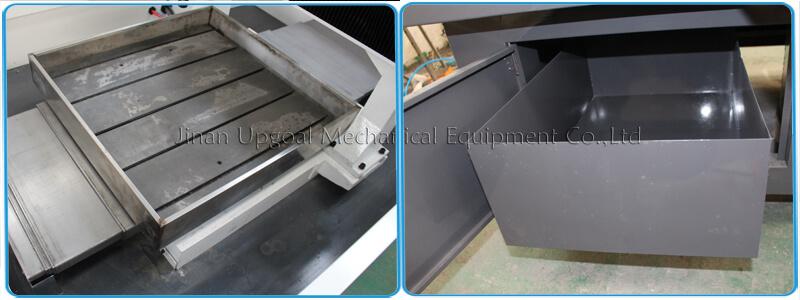

    Stainless steel water slot cooling

    Stainless steel water slot cooling

    Half protection cover

    Half protection cover

    Semi-auto lubrication & Fuling inverter

    Semi-auto lubrication & Fuling inverter

    Power connection

    Power connection

    Auto tools calibration

    Auto tools calibration


    Reference Sample Photos

    Reference Samples

    Reference Working Videos


    https://www.youtube.com/watch?v=NqFseny9xNQ
