    90W Craft Paper Co2 Laser Engraving Cutting Machine UG-9060L

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-9060L
    Certification : CE/FDA
    Price : USD 2020-USD 2260 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 200 sets/month
    Delivery Time : Within 7 working days
    • Product Details
    • Company Profile

    90W Craft Paper Co2 Laser Engraving Cutting Machine UG-9060L

    90W Craft Paper Co2 Laser Engraving Cutting Machine UG-9060L


    Application


    Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

    Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

    Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials


    Features


    Laser Head

    Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

    Laser Tube

    Adopted high quality Reci W2 (rated power 90W, maximum power 100W) Co2 laser tube, long working time time and stable

    Working Table

    Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

    Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality

    Beam Path System

    Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

    Beam Path System

    Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

    Motion System

    Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

    Operation System

    Advanced USB port RuiDa 6442S control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

    With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

    Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

    Rationalized placement of the electronic parts. Optimized heat dissipation effect.

    With WIFI connection function, no need to use USB cable, convenient and improving working efficiency.

    Cooling System

    Water pump cooling or industrial chiller

    Technical parameters

    Effective working area900*600mm(3*2inch)
    Laser TypeCo2 sealed-off laser tube,10.64um
    Laser tube powerReci W2, rated power 90W, maximum power 100W
    Working tableHoney comb and knife strip, double working table
    Driver mode3 phases stepper motor and Driver, Yako brand
    Guide railLinear square guide rail ( Hiwin,Taiwan)
    TransmissionBelt transmission
    Control panelEnglish
    Laser output control1-100% software setting
    Engraving speed0-60000mm/min
    Cutting speed0-10000mm/min
    Control systemRuiDa 6442
    Control softwareRDWorksV8
    Design software when deliveryCorelDraw
    Control panelDSP offline
    Resolution accuracy< 0.01mm
    Location precision< 0.01mm
    Highest scanning accuracy2500DPI
    Type of coolingWater pump
    Water protection systemYes
    FocusManual focusing
    Blow-off system

    Air pump for the laser head

    Air blower for the machine

    Working temperature0-45 °C
    Operating humidity5-95% (without condensed water)
    Supporting picture formatPLT,DST,DXF,BMP, DWG,AI,LAS,etc
    Voltage

    AC220V +10% 50/60Hz, single phase

    or AC 110V+10% 50/60Hz, single phase

    CertificateCE/FDA

    Reference Parts Photos

    Co2 laser head with infrared positioning

    Co2 laser head with infrared positioning

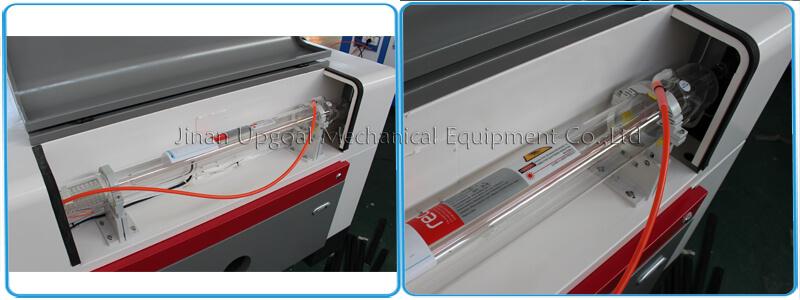

    Reci W2 90W Co2 laser tube

    Reci W2 90W Co2 laser tube

    Honey comb and knife strip double working table

    Honey comb and knife strip double working table

    Linear square guide rail and 3M belt transmission

    Linear square guide rail and 3M belt transmission

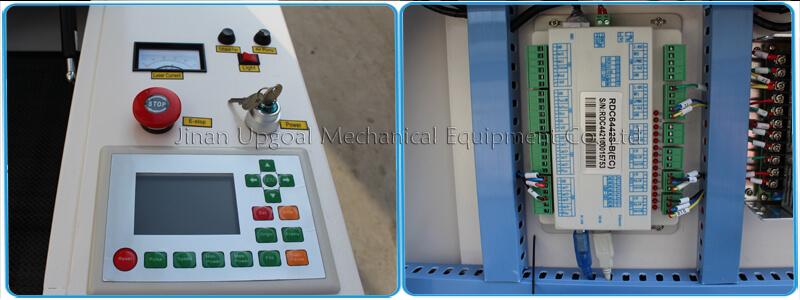

    RuiDa 6442s control system

    RuiDa 6442s control system

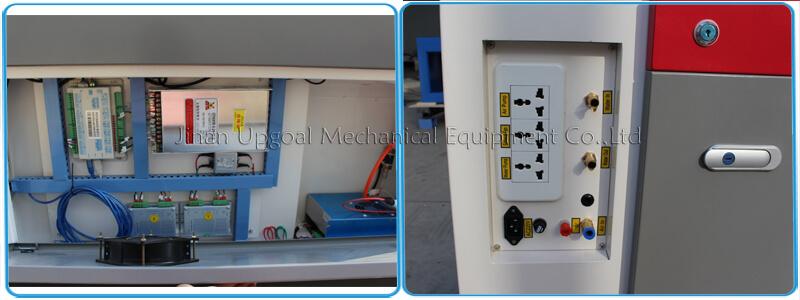

    Control cabinet & power socket

    Control cabinet & power socket

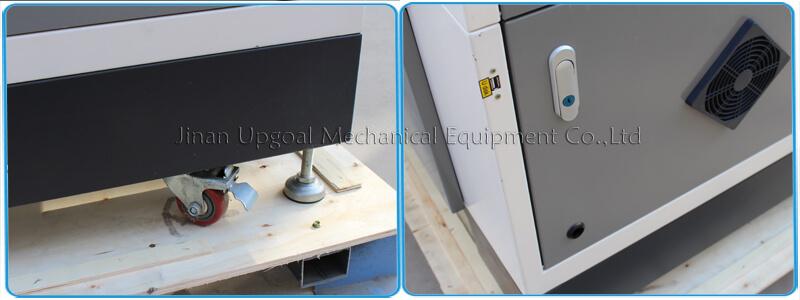

    Foot pad / wheel and USB port

    Foot pad / wheel and USB port

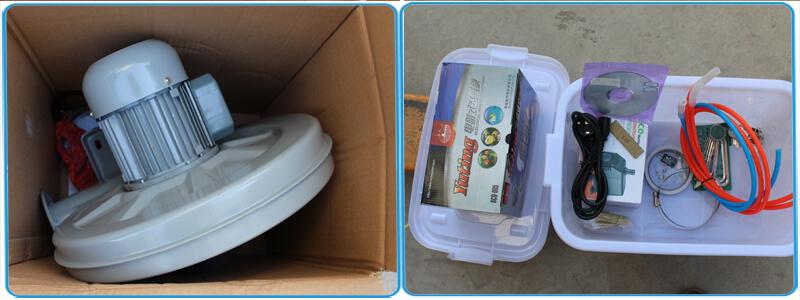

    Air blower. air pump, water pump and accessories

    Air blower. air pump, water pump and accessories

    Packing

    Packing

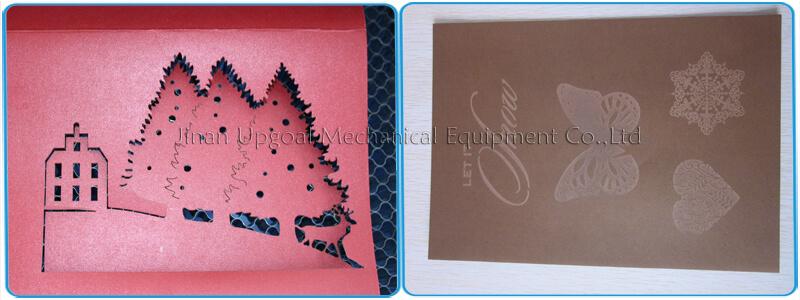

    Reference Sample Photos

    Samples

    Reference Working Videos

    https://www.youtube.com/watch?v=sxjVLp3czWg
