    Large Advertising Sign Board Co2 Laser Engraving Cutting Machine 4*8 Feet 1300*2500mm

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-1325L
    Certification : CE/FDA
    Price : USD 3510-USD 4000 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 200 sets/month
    Delivery Time : Within10 working days
    • Product Details
    • Company Profile

    Large Advertising Sign Board Co2 Laser Engraving Cutting Machine 4*8 Feet 1300*2500mm

    Large Advertising Sign Board Co2 Laser Engraving Cutting Machine 4*8 Feet 1300*2500mm


    Application


    Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

    Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

    Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials


    Features


    Laser Head

    Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.


    Laser Tube

    Adopted famous Reci W4 Co2 laser tube, rated power: 100W, peak power: 130W, long time time and stable


    Working Table

    Knife Strips: With oxidation treatment and low reflection ratio Ensured cutting quality

    Dust proof system for Y-axis:Maximum Loading 50kgs with 300mm up-down distance.


    Beam Path System

    Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.


    Motion System

    Imported High precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise


    Operation System

    Advanced USB port Leetro MPC6585 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .


    With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.


    Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.


    Rationalized placement of the electronic parts. Optimized heat dissipation effect.


    Cooling System

    Industrial chiller CW-5000, ensuring the laser tube long time continus working


    Technical parameters

    Effective working area1300*2500mm
    Laser TypeCo2 sealed-off laser tube
    Laser tube power

    W4 series, Reci, Beijing

    (Rated power: 100W, max. Power: 130W)

    Working tableKnife strip
    Driver mode3 phases stepper motor and Driver, Yako brand
    Guide railLinear square guide rail ( Hiwin,Taiwan)
    TransmissionBelt transmission
    Control panelEnglish
    Laser output control1-100% software setting
    Engraving speed0-60000mm/min
    Cutting speed0-10000mm/min
    Control systemLeetro MPC6525
    Control softwareLaserCut 5.3
    Design software when deliveryCorelDraw
    Control panelDSP offline
    Resolution accuracy< 0.01mm
    Location precision< 0.01mm
    Highest scanning accuracy2500DPI
    Type of coolingIndustrial chiller, CW-5000 cooling
    Water protection systemYes
    Blow-off system

    Air pump for the laser head

    Air blower for the machine

    Biggest scanning accuracy2500DPI
    Working temperature0-45 °C
    Operating humidity5-95% (without condensed water)
    Supporting picture formatPLT,DST,DXF,BMP, DWG,AI,LAS,etc
    VoltageAC 220V+10% 50/60Hz, single phase
    CertificateCE/FDA

    Reference Parts Photos

    Reci W4 100W Co2 laser tube

    Reci W4 100W Co2 laser tube

    Linear square guide rail and belt transmissionLinear square guide rail and belt transmission

    Dust proof for Y-axisDust proof for Y-axis


    Leetro control panelLeetro control panel


    Control cabinetControl cabinet

    Power socket & air blower(550W, 2 pcs)

    Power socket & air blower(550W, 2 pcs)

    CW-5000 industrial chiller & accessories & packing


    CW-5000 industrial chiller & accessories & packing

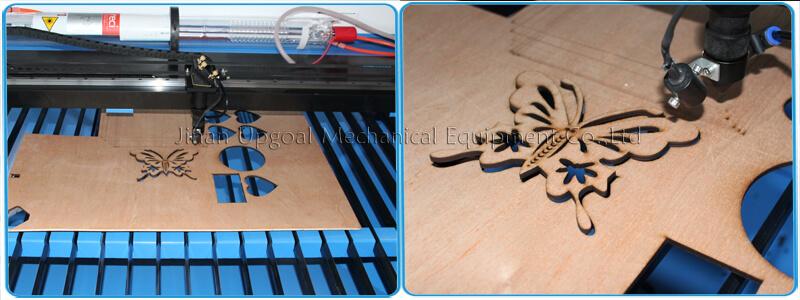

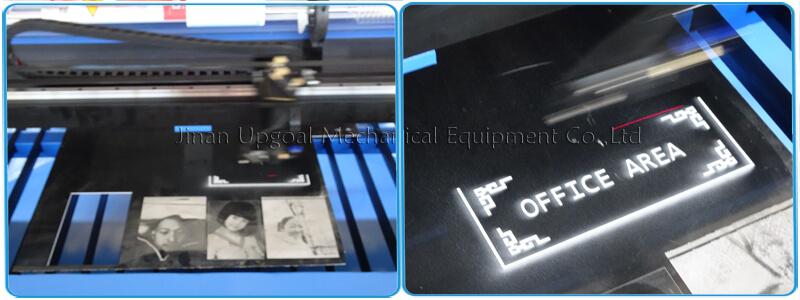

    Reference Sample Photos

    Samples


    Reference Working Videos

    https://www.youtube.com/watch?v=da_Y511ea0g

    https://www.youtube.com/watch?v=kcY7ccDJXM4


    For more information, just feel free to contact us!
