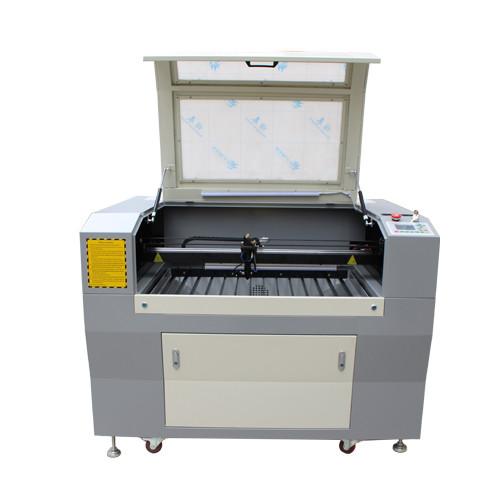

Leather Cutter Machine Co2 Laser Cutter 90W with 900*600mm Working Area

Application

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials

Features

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted famous Reci W2 Co2 laser tube, rated power: 90W, peak power: 100W, long time time and stable

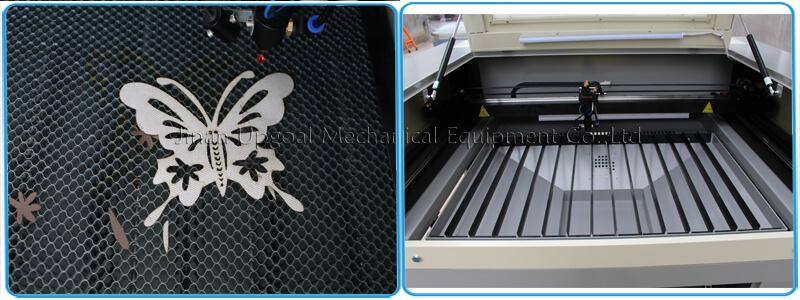

Working Table

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port RuiDa RDC 6442S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With WIFI connection function, no need to use USB cable, convenient and improving working efficiency

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-5000, ensuring the laser tube long time continus working

Technical parameters

Reference Parts Photos

Co2 laser head with infrared positioning

Reci W2 90W Co2 laser tube

RuiDa control panel

Honey comb and knife strip double working table

Control cabinet & WIFI router

Yako three phases motor and driver

Auto lifting table & auto focusing

Linear square guide rail & belt transmission, dual LED

USB disk, air pump & air blower & light button

Accessories

Packing

Reference Sample Photos

Reference Working Videos

https://www.youtube.com/watch?v=dGiAY1g472A

For more information, just feel free to contact us!
