    1325 Furniture Wood CNC Engraving Cutting Machine with DSP Offline Control

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-1325
    Certification : CE
    Price : USD3200-USD 3600 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 180 sets/month
    Delivery Time : Within 10working days
    • Product Details
    • Company Profile

    1325 Furniture Wood CNC Engraving Cutting Machine with DSP Offline Control

    1325 Furniture Wood CNC Engraving Cutting Machine with DSP Offline Control​


    Application


    Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc


    Features


    1.Welded steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.


    2. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.


    3. Large power 3.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.


    4. China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.


    5. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.


    6. DSP offline control system with USB interface which is completely off from Computer. More Humanizeddesign with Simple and Convenient Handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.


    7. Dust collector, helping to suck dust, milling dust,keeping machine cleaning.


    8. Auto lubrication system more convenient for maintenance.


    9. Semi-auto tool calibration, more convenient for each time Z-axis 0 point setting.


    10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.


    11. With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function, effectively ensure long time working precision.


    Technical Parameters


    Effective working area1300(X)mm*2500(Y)mm*200(Z)mm
    MaterialsMore thickness steel pipe welded machine holder bed, cast iron gantry
    Working tableAluminum T slot working table
    Moving typeGantry moving
    Guide railLinear square guide rail ( Hiwin, Taiwan)
    TransmissionHelical rack &pinion for X Y -axis, Lead ball screw for Z-axis
    Driving modeStepper motor (86BYGH450B) and driver for XYZ-axis
    Spindle motor3.2kw water cooling, ER20
    Spindle speed0-24000rpm
    InverterSunfar
    Voltage

    AC 220V+ 10%, 50/60Hz, single phase or

    AC 380V+ 10%, 50/60Hz, three phases

    Traveling speed>25000mm/min
    Engraving speed>12000mm/min
    Machine accuracy0.03mm
    Control systemDSP offline control system A11E, 3 axis
    Suitable softwareArtcam, Type3, Ucancam V9,etc
    Carving InstructionsG code *Uoo *mmg *plt HPGL
    Running environment temperature0-45 ℃
    Relative humidity30%-75%
    Lubrication systemSemi-auto
    Tool calibrationAuto
    CertificateCE
    Reference Parts Photos

    3.2kw water cooling spindle3.2kw water cooling spindle

    Aluminum T slot working table

    Aluminum T slot working table

    Hiwin, Taiwan linear square guide rail and helical rack and pinion transmission

    Hiwin, Taiwan linear square guide rail and helical rack and pinion transmission

    Control cabinet

    Control cabinet

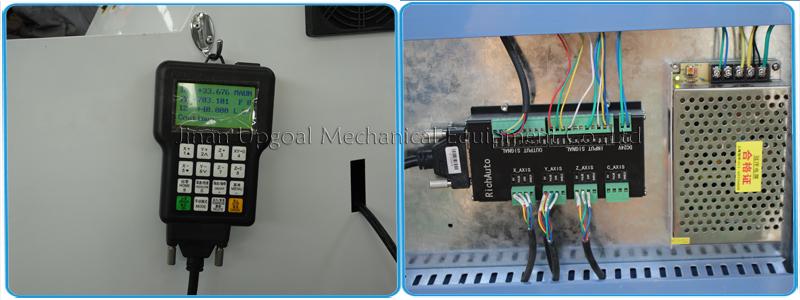

    DSP A11 offline control system

    DSP A11 offline control system


    Auto tools calibration

    Auto tools calibrayion

    Semi-auto lubrication & hard limit switch

    Semi-auto lubrication & hard limit switch

    Foot pad & accessories


    Packing and delivery


    Reference Sample Photos

    Samples


    Reference Working Videos


    https://www.youtube.com/watch?v=dGmhsSzOO90


    For more information, just feel free to contact us!
