Demountable 900*600mm Co2 Laser Engraving Cutting Machine with
RuiDa Controller
Application
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden
toys), advertising filed,decorative and decorating, craft gift
industry, electronic, garments and leather industry, art glass
industry, art glass industry,computerized embroidery and clipping,
packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic,
rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo
products, Double-color board, paper, leather, ceramics, textiles,
crystal, jade, coconut shells, horn, resin animal sebum, ABS plate,
lamp shade and other non-metallic materials
Features
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser
power convert ratio.
Laser Tube
Adopted high quality Reci W2 (rated power 90W, maximum power 100W) Co2 laser tube, long working time time and stable
Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect
and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting
quality
Auto Lifting Table for more thickness materials
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure
stable power transference.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure
stable power transference.
Motion System
Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port RuiDa 6442S control system with large inner memory device and Fast curve cutting and
Optimized shortest path function, Greatly improved the working
efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The
High speed motion control program with pre-buffering function
enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs
directly exporting. With advanced Color management and defining the
working turns with different colors , All or a part work can done
in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
With WIFI connection function, no need to use USB cable, convenient and improving working
efficiency.
Cooling System
Industrial chiller CW-5000, ensuring the laser tube long time continuous working.
Rotary Axis
Roller type rotary axis, no diameter limitation, suitable for glass engraving.
Technical parameters
| Effective working area | 900*600mm(3*2inch) |
| Laser Type | Co2 sealed-off laser tube,10.64um |
| Laser tube power | Reci S2, rated power 90W, maximum power 100W |
| Working table | Honey comb and knife strip, double working table |
| Lifting table | Auto, up and down |
| Driver mode | 3 phases stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | RuiDa 6442 with WIFI router |
| Control software | RDWorksV8 |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Industrial chiller CW-5000 cooling |
| Water protection system | Yes |
| Focus | Auto focusing |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Voltage | AC220V +10% 50/60Hz, single phase or AC 110V+10% 50/60Hz, single phase |
| Certificate | CE/FDA |
Reference Parts Photos

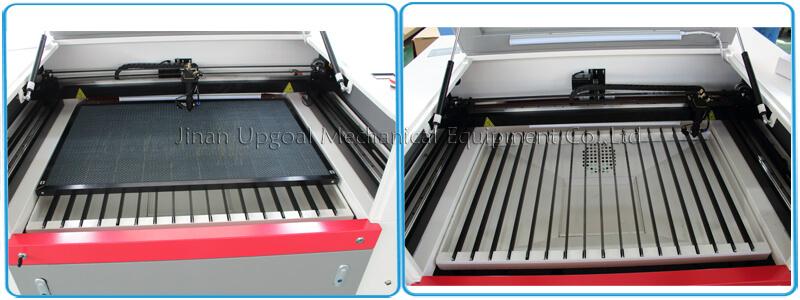

Double working table, honey comb and knife strip
Auto focusing laser head, linear square guide rail & 3M belt
transmission

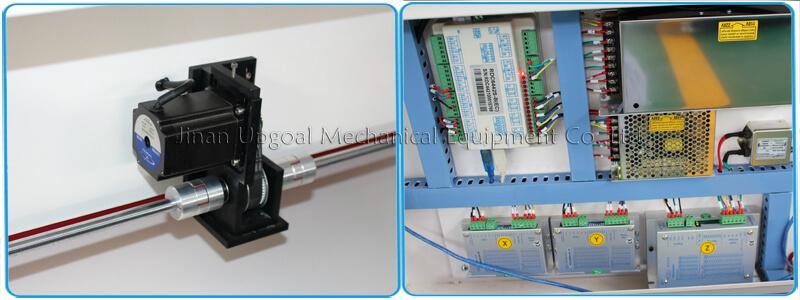

Yako three phases stepper motor and driver
Reci W2( rated power 90W, maximum power 100W) co2 laser tube
RuiDa control system

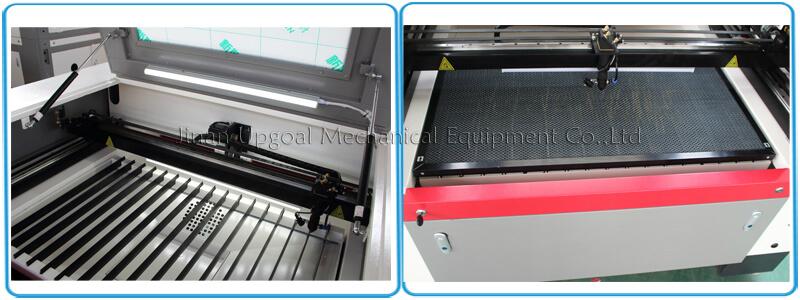

Auto lifting table
Roller rotary axis and CW-5000 industrial chiller
Switches & power socket
Detachable bottom base for narrow door designed
Samples
Reference Sample Photos
Reference Working Videos
