Removable 4 Axis 1325 Woodworking CNC Engraving Machine with Dia 300 Rotary Axis Holder

Application

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc

Features

1.Welded T type steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

2. 3mm Thickness aluminum T slot working table, more stable and longer life time than normal T slot table.

3. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

4. Large power 3.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

5. China famous 86BYGH450B stepper motor and Leadshine stepper driver for XYZ-axis, 86BYGH450C stepper motor for A-axis, high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

6. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

7. Extended gantry & independent removable rotary axis holder, with diameter 300mm 4 chucks, working length 2500mm rotary axis, cylinder processing is in a special zone, each time, no need put the heavy rotary axis on the working table, saving labor and improving working efficiency.

8. DSP A18 4 axis offline control system with USB interface which is completely off from Computer. More Humanized design with Simple and Convenient Handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.

9. Semi-auto lubrication system,more convenient for maintenance.

10. Auto tool calibration, more convenient for each time Z-axis 0 point setting.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

12. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.

Technical Parameters

Reference Parts Photos

3.2kw water cooling spindle & auto tools calibration

More thickness(3mm) transverse aluminum T slot working table

Extended gantry with independent rotary axis holder, rotary diameter 300mm, length 2500mm, reduction gear transmission

DSP A18 4 axis offline control system

Semi-auto lubrication

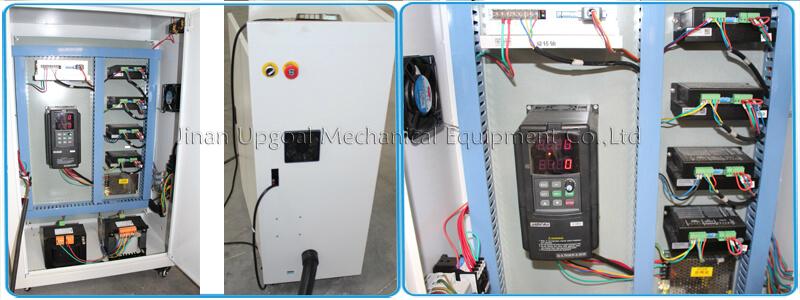

Control cabinet( Leadshine DMA860H stepper driver for XYZ-axis, Yako 2811 driver for A-xis, Sunfar inverter)

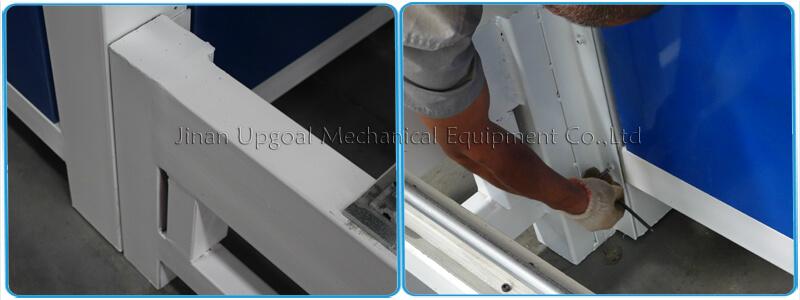

Removable rotary axis holder
