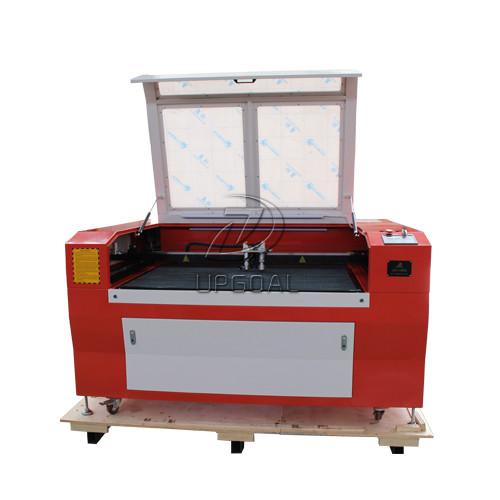

Low Cost Co2 Laser Engraving Cutting Machine for Stainless Steel /Acrylic/ Leather/ Wood with Double Heads​

Application

Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth. Widely used in the industry of Advertising, craft gift, shoes, toys, garment, model, construction, package, paper and computerized embroidery &clipping.

Features

1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.

2. Equipped with double metal&non-metal cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.

Laser head A1: with Reci W6 Co2 laser tube, mainly used for thin metal cutting & more thickness non-metal cutting, laser head A2: with Reci W2 Co2 laser tube, used for non-metal engraving and thin non-metal cutting.

3. Reci seal Co2 laser tube, strong cutting ability and long working life.

4. Adopting imported focus lens with high luminous and mirror with high relativity ensure stable power transference and laser beam consistency.

5. Working Table: double working table and auto lifting table

Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.

Knife Strips: With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table:Maximum Loading 50kgs with 300mm up-down distance.

6. Motion System: Imported High precision, low friction force and stand wear and Hiwin linear square guide rail and blocks with 3M belt ensured stable transmission, lower noise

7. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.

8. With advanced embedded Leetro DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect high strength cutting table, applicable for metal and non-metal cutting.

9. Industrial water chiller CW-5200 is equipped to ensure the machine can work last long time.

10. Roller & chuck type rotary axis for all kinds of cylinder engraving.

Technical Parameters

Reference Parts Photos

Double laser heads: A1 for metal & non metal cutting A2: for non-metal engraving cutting

Reci W6 130W+ Reci W2 90W dual laser tubes

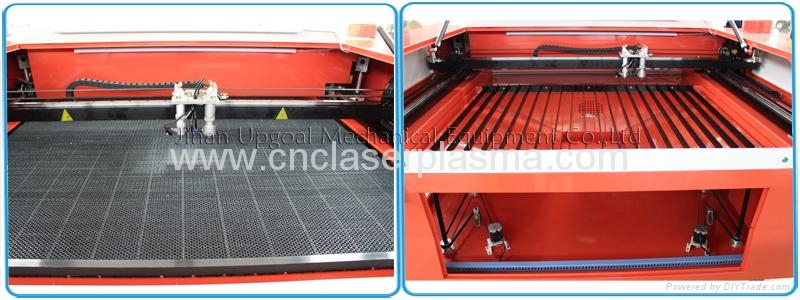

Honey comb & knife strip double working table, auto lifting table

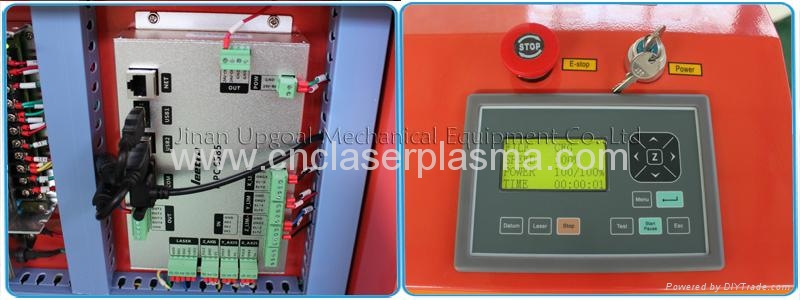

Leetro control system

Roller & chuck type rotary axis

Power socket & accessories: CW-5200 industrial chiller, air blower, air pump, etc

Reference Sample Photos

Stainless steel cutting

Acrlic & leather engraving cutting

Reference Working Videos

https://www.youtube.com/watch?v=IuOHx3wpmj4

https://www.youtube.com/watch?v=lscSO2BCFjA

For more information, just feel free to contact us!
