130W 20mm Thickness Acrylic Co2 Laser Cutting Machine with Air
Filter
Application
Application industry: Marble engraving, Advertisement, Gift
Package, Model.
Application Materials: Acrylic,crystal, marble, wood, paper, cloth,
leather, rubber, glass, ceramic tile.
Features
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser
power convert ratio.
Laser Tube
Adopted high quality Reci W2 (rated power 90W, maximum power 100W) Co2 laser tube, long working time time and stable
Working Table
Honey Comb Table: applicable to various soft materials with good adsorption effect
and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting
quality
Auto Lifting Table for more thickness materials
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure
stable power transference.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure
stable power transference.
Motion System
Imported High precision, low friction force and stand wear and Hiwin linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port RuiDa 6442S control system with large inner memory device and Fast curve cutting and
Optimized shortest path function, Greatly improved the working
efficiency .
With WIFI connection function, no need to use USB cable, convenient and improving working
efficiency.
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The
High speed motion control program with pre-buffering function
enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs
directly exporting. With advanced Color management and defining the
working turns with different colors , All or a part work can done
in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5000, ensuring the laser tube long time continuous working.
Air filtration system
Air filter with 5 layers filtration, during the laser engraving cutting machine using, can filtering a
mass of gas & smoke which are harmful to human health when
engraving & cutting processing materials. Has the feature of low
noise, flexible using, and cover small area.
Technical parameters
| Effective working area | 900*600mm |
| Laser Type | Co2 sealed-off laser tube |
| Laser tube power | W6series, Reci, Beijing (Rated power: 130W, max. Power: 160W) |
| Working table | Honey comb and knife strip, double working table |
| Lifting table | Automatic up and down, 300mm |
| Driver mode | 3 phases stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | RuiDa RDC6442S |
| Control software | RDWorks V8 |
| Wifi connection | Yes |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Industrial chiller CW-5000 cooling |
| Water protection system | Yes |
| Focus | Auto focus |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Air filtration system | Air filter |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Voltage | AC 110V+10% 50/60Hz, single phase or AC 220V+10% 50/60Hz, single phase or |
| Certificate | CE/FDA |
Reference Parts Photos
Co2 laser head with infrared positioning and auto focusing

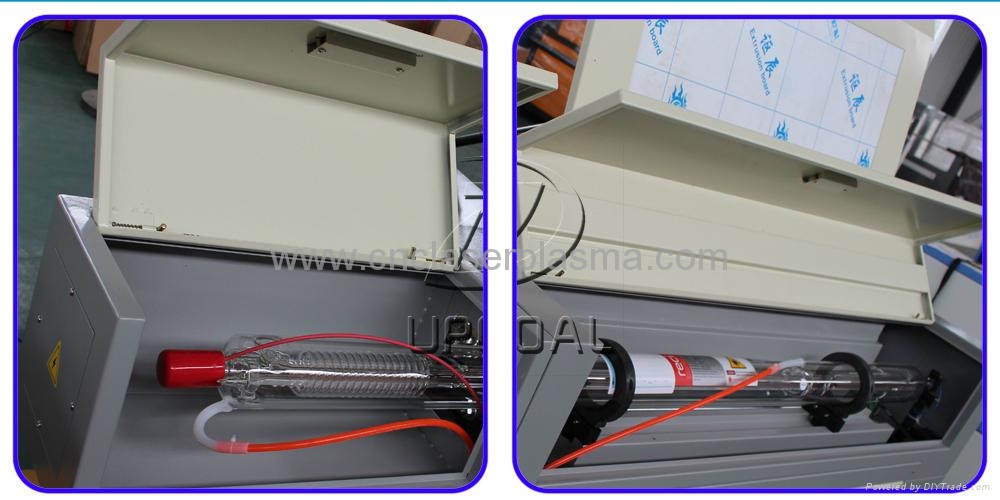

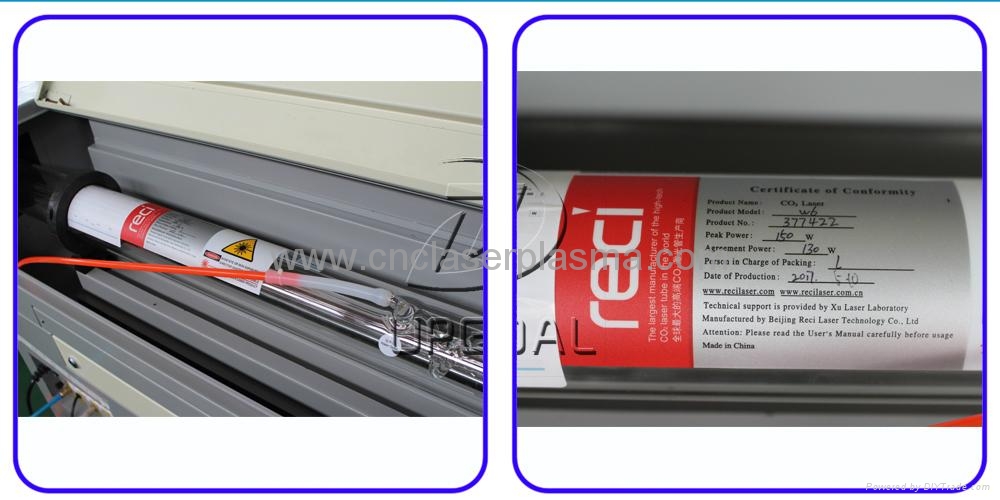

Reci W6 130W co2 laser tube
Double working table, honey comb and knife strip
Auto lifting table, up and down 300mm

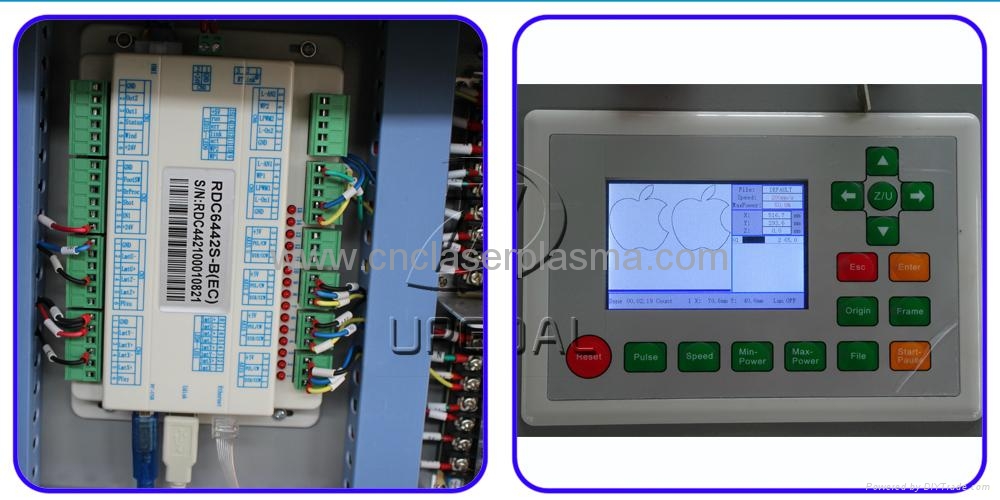

RuiDa control system
Yako three phases stepper motor and driver
Control cabinet & WIFI router
Switches for machine, E stop, light, air pump, air blower and USB
port
Power Socket, Industrial chiller CW-5000 and accessories
Air filter--5 layers filtration
