    4*8 Feet 4 Axis Wood CNC Router with Underneath Rotary Axis/Mach3 Control

    4*8 Feet 4 Axis Wood CNC Router with Underneath Rotary Axis/Mach3 Control​


    Application

    Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out and simple copper aluminum plastic board, etc

    Features

    1.Welded T type steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

    2. Aluminum T slot working table, part which on the top of rotary axis is removable,more convenient and easy to take off.

    3. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

    4. Large power 3.2kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

    5. China Leadshine hybrid servo motor 863HSM80H-E1 and driver H2-2206 for XYZA-axis, high precision, fast speed and more stable.

    6. Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

    7. Mach3 4 axis control system, with USB port for desktop or laptop computer, supporting XYZA-axis moving together, showing the processing path , more convenient.

    8. # Underneath 4th axis rotary axis diameter 300mm, working length 1200mm, reduction gear transmission, compared with fix the rotary axis on the working table, no need increase the Z-axis height, keep the machine stability.

    9. Auto lubrication system,more convenient for maintenance.

    10. Auto tool calibration, more convenient for each time Z-axis 0 point setting.

    11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

    12.With the function of Break-point memory, power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.

    Technical Parameters

    Effective working area1300(X)mm*2500(Y)mm*300(Z)mm
    4th axisRotary axis, diameter 300mm, working length 1200mm, reduction gear transmission
    MaterialsMore thickness T type steel pipe welded machine holder bed, cast iron gantry
    Working tableAluminum T slot working table, part is removable
    Moving typeGantry moving
    Guide railLinear square guide rail ( Hiwin, Taiwan)
    TransmissionHelical rack &pinion for X Y -axis, Lead ball screw for Z-axis
    Driving modeLeadshine hybrid servo motor 863HSM80H-E1 and driver H2-2206 for XYZA-axis
    Spindle motor3.2kw, water cooling
    Spindle speed0-24000rpm
    Collets typeER20
    InverterSunfar
    Voltage

    AC 220V+ 10%, 50/60Hz, single phase or

    AC 380V+ 10%, 50/60Hz, three phases

    Traveling speed>25000mm/min
    Engraving speed>12000mm/min
    Machine accuracy0.02mm
    Repositioning accuracy0.02mm
    Diagonal error0.2mm
    Control systemMach3, 4 axis, with USB port
    Suitable softwareArtcam, Type3, Ucancam V9,etc
    Carving InstructionsG code *Uoo *mmg *plt HPGL
    Running environment temperature0-45 ℃
    Relative humidity30%-75%
    Lubrication systemAuto
    Tool calibrationAuto
    CertificateCE

    Reference Parts Photos


    3.2kw water cooling spindle with water pray cooling

    3.2kw water cooling spindle with water pray cooling

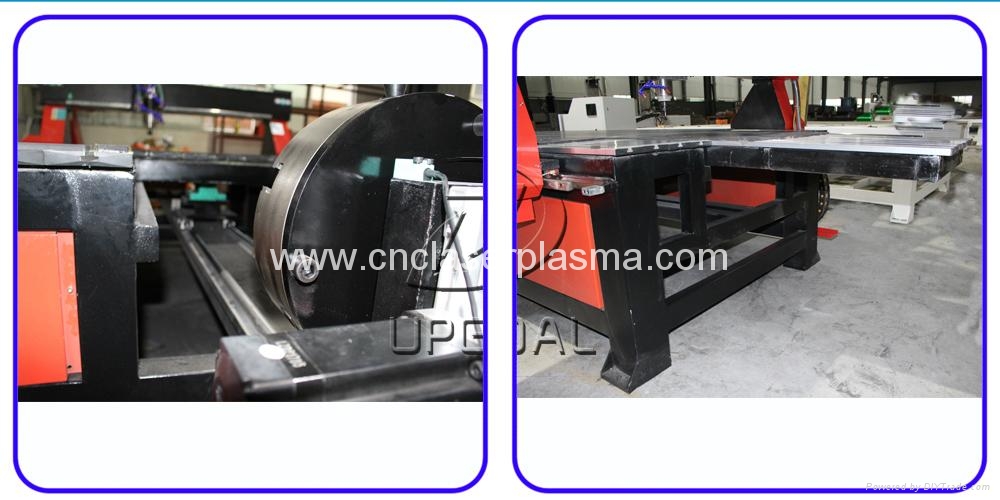

    Underneath diameter 300mm rotary axis & part of removable T slot working table

    Underneath diameter 300mm rotary axis & part of removable T slot working table


    Linear square guide rail, Hiwin & helical rack pinioin transmission

    Linear square guide rail, Hiwin & helical rack pinioin transmission


    Mach3 4 axis offline control system

    Mach3 4 axis offline control system


    Leadshine hybrid servo motor (863HSM80H-W1)and driver (H2-2206)transmission

    Leadshine hybrid servo motor (863HSM80H-W1)and driver (H2-2206)transmission


    Control cabinet

    Photoelectricity limit swithc & hard limit switch

    Photoelectricity limit swithc & hard limit switch

    Auto-lubrication
