    Stainless Steel Cylinder Fiber Laser Marking Machine with Rotary Axis AC110V

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-20FM
    Certification : CE
    Price : USD 3000-USD4100 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 200 sets/month
    Delivery Time : Within 7 working days
    • Product Details
    • Company Profile

    Stainless Steel Cylinder Fiber Laser Marking Machine with Rotary Axis AC110V

    Stainless Steel Cylinder Fiber Laser Marking Machine with Rotary Axis AC110V


    Application


    Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component, hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters’s, marking, mass production, marking clear and beautiful, never disappear.


    Features


    1. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.


    2. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.

    3. Marked graph and characters is permanent , will not regression due to friction.


    4. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.


    5. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.


    6. One piece design of control cabinet and marking table, small cover area.


    7. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.


    8. Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can use SHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.


    Technical Parameters

    Maximum output laser power20W, Raycus
    Wave length of laser1064nm
    Marking scope110*110mm
    Laser sourcesFiber module
    Laser HeadHigh speed scanning head
    The minimum focus facula diameter20μm
    Minimal character0.01mm
    Control systemOriginal EzCad controller with USB port
    Marking depth0.01-5mm( depends on different materials)
    Marking line width0.01-0.1mm
    Marking speed≤7000mm/s
    Laser repetition frequency20kHz~80kHz
    Cooling methodForce-air Cooling
    Power supply

    AC 110V±10%,50/60Hz, single phase or

    AC 220V±10%,50/60Hz, single phase

    Support formatPLT, BMP, DXF, JPG, TIF, AI etc
    Process MaterialAll kinds of metal and part of Non-metal Materials
    CertificateCE/FDA

    Reference Parts Photos

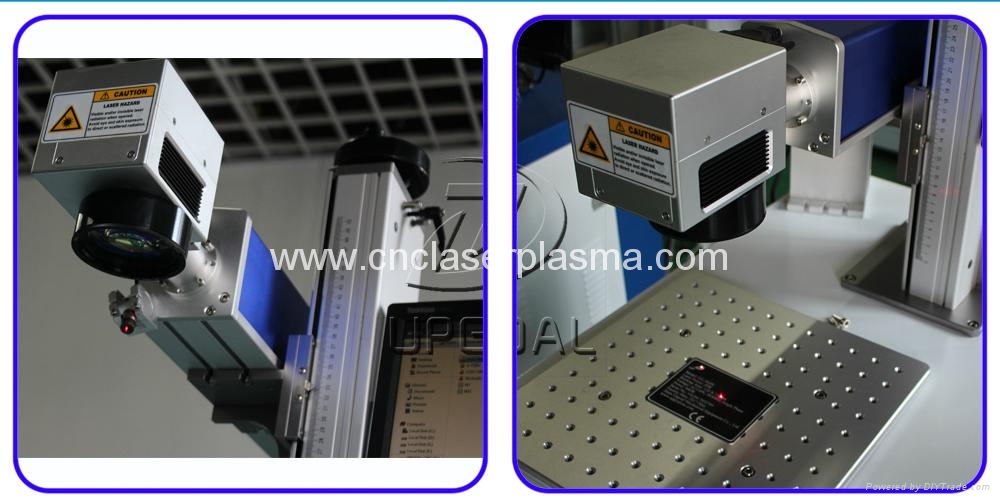

    Marking head

    Marking head


    Raycus fiber laser optical bench

    Raycus fiber laser optical bench


    Double red dot positioning

    Double red dot positioning

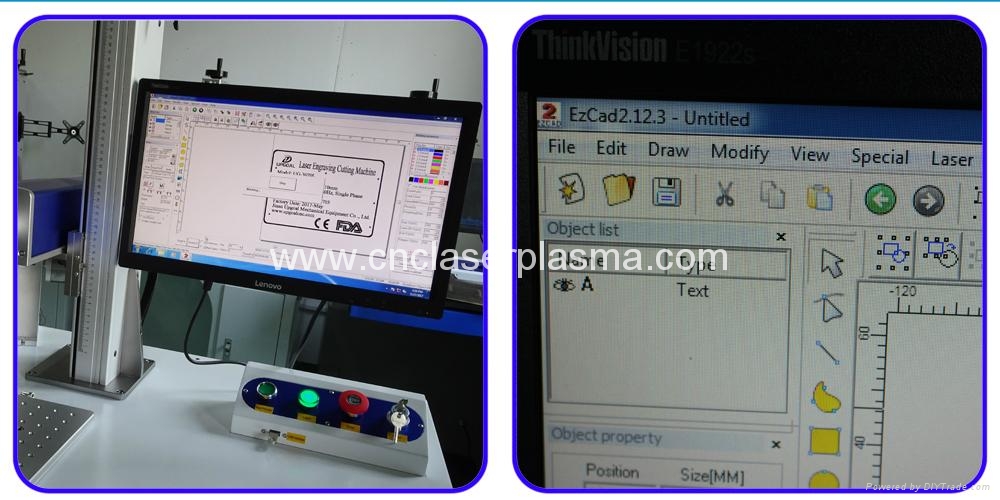

    Original EzCad software

    Original EzCad software

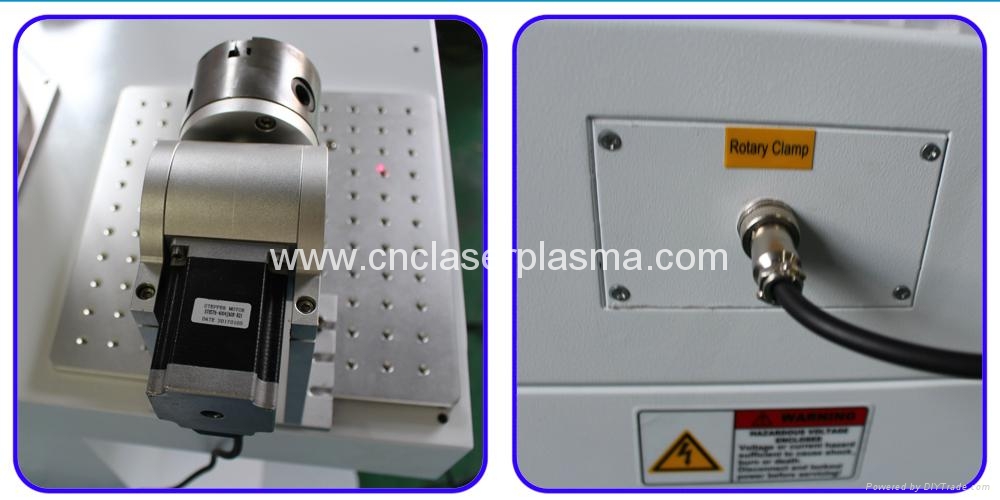

    Rotary axis, diameter 80mm

    Rotary axis, diameter 80mm


    Control cabinetControl cabinet

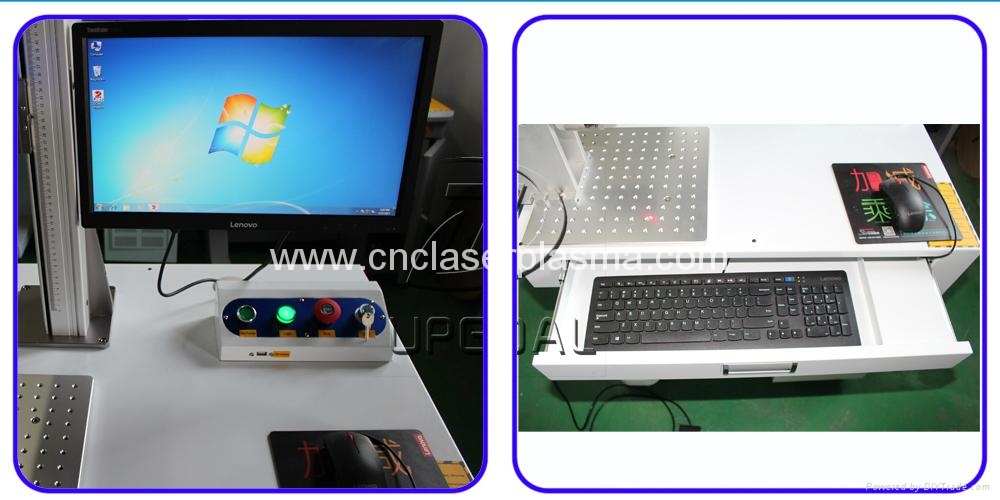

    Lenovo desktop computer, windows 7, 32 or 64 bits, English( or other language)

    Lenovo desktop computer, windows 7, 32 or 64 bits, English( or other language)


    Foot switch & power switches

    Foot switch & power switches


    Accessories

    Accessories


    Packing: one plywood

    Packing


    Samples


    Reference working videos


    https://www.youtube.com/watch?v=MYD2nAbor7U&lc=z132itujytiwsnsvx23hffwohuebxnrqo04


    https://www.youtube.com/watch?v=2tlpPZk7Mqg


    For more information, just feel free to contact us!
