3D Metal Mold CNC Router for Sale with 600*600mm Working Area/Heavy
Duty Structure
Application
Mould of Copper, Iron, aluminum, stainless steel. Shoe mould,
mobile mould, Red Copper electrode, Building model, name tag,
copper stamp.
Features
1. Cast Iron as a whole with Vrbration Temper aging treatment ensures no deformation for
long time.
2. Cast iron Working Table with Plaform moving type. Duarable without deformation enable
postioning more precisionly .
3. Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precison.
4. Three axis with precision ball screw transmission ensure the engraving speed and accuracy.
5. High variable speed 3.2KW water cooling spindle, big torque, longer life, strong cutting ability and continous work for long time.
5.Leadshine hybrid servo motor and driver for XYZA-axis, compared with the stepper motor, ensuring high speed and
precision working.
6. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adpot high quality electornic
parts, minimizig fault rate.
7. Oil mist cooling system, ensuring the cooling for the metal & hard materials, compared
with the water cooling system, can avoide the metal gettting rust.
8. Half closed cover design, and unique dust&water Proof desgin effectively protect the
transimssion parts from rust, dust &dirt.
9. PCI NcStudio control system, connect with the desktop computer, showing the processing path and
estimate the processing time, more convenient.
10. Wireless handwheel and wireless auto tool calibration, more convenient for operation.
11. With the fucntion of Break-point memory ,power failure resuming and automatic home/orgin correction
function.Effectively ensure long time working precision.
12. Working Pause, Speed adjust, Working depth adjust at any time
while working. Preview the 2D&3D working result With simulation fucntion.
Variable Speed is suitable for varisou materials and industry.
13. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit
protection fucntion which can stop the mechanical collision due to
unproper size given to the design.
Technical Parameters
| Effective working area | 600(X)mm*600Y)mm*200(Z)mm |
| Materials | Square steel tube machine holder, cast iron machine bed & working
table & gantry & Z-axis |
| Protection cover | Half cover |
| Working table | Cast iron with T slot |
| Moving type | Platform moving |
| Guide rail | Linear square guide rail ( Hiwin, Taiwan) |
| Transmission | Lead ball screw for XYZ-axis |
| Driving mode | Hybrid servo motor and driver for XYZA-axis( Leadshine) |
| Spindle motor | 3.2kw water cooling |
| Spindle speed | 0-24000rpm |
| Inverter | Sunfar |
| Voltage | AC 380V+ 10%, 50/60Hz, three phases or AC 220V+ 10%, 50/60Hz, sinle phase |
| Traveling speed | >8000mm/min |
| Engraving speed | >6000mm/min |
| Machine accuracy | 0.02mm |
| Control system | PCI NcStudio( for desktop computer, windows XP/7) |
| Hand wheel | Wireless |
| Suitable software | Artcam, Type3, Ucancam V9,etc |
| Carving Instructions | G code *Uoo *mmg *plt HPGL |
| Running environment temperature | 0-45 ℃ |
| Relative humidity | 30%-75% |
| Cooling system | Oil mist cooling |
| Tool calibration | Auto, wireless type |
| 4th axis | Rotary axis, diameter 160mm, working length 400mm, reduction gear
transmission |
| Certificate | CE |
Reference Parts Photos
Heavy duty structure
3.2kw water cooling spindle
Wireless auto tool calibration
Cast iron T slot working table
Platform moving type
Leadshine hybrid servo motor and driver
PCI NcStudio control system with wireless handwheel
Stainless steel water slot cooling system
Auto lubrication

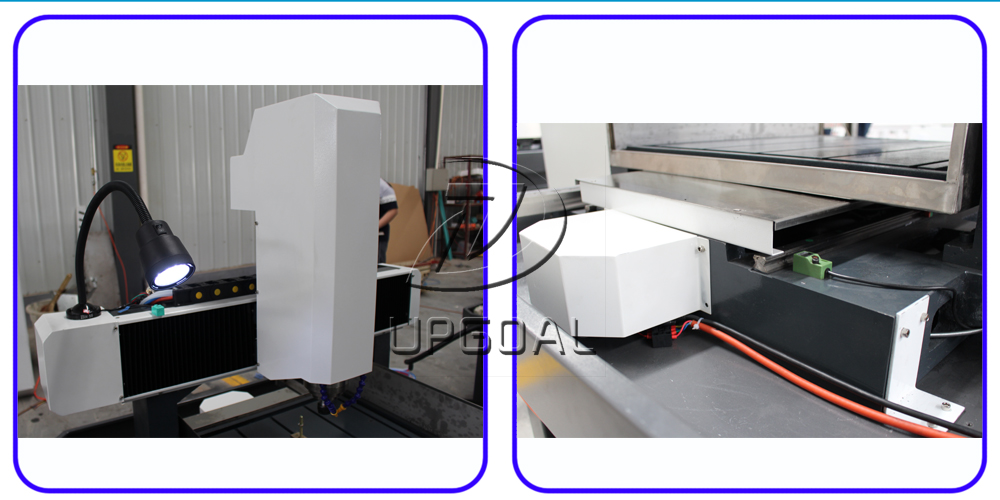

Head lamp & limit sensor
Packing
Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=aGGrVWY9hOg&feature=youtu.be
For more information, just feel free to contact us!
Jinan Upgoal Mechanical Equipment Co.,Ltd
CNC Router/Laser Engraving Cutting Marking Machine/Plasma Cutting
Machine
