1.5mm Stainless Steel 15mm Wood Laser Cutting Machine with RuiDa
Live Focusing System
Application
Applied to a certain of metal and non-metal materials Professional
engraving/cutting such as stainless steel,carbon steel,wood,organic
glass,plastic, cloth.
Widely used in the industry of Advertising, craft gift, shoes,
toys, garment, model, construction, package, paper and computerized
embroidery &clipping.
Features
1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry
milling machine ensured the accuracy.
Equipped with metal&non-metal laser cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.
2. Reci W6 seal Co2 laser tube, rated power 130W, maximum power 160W, strong cutting ability and
long working life.
3. Adopting imported focus lens with high luminousness and mirror with high reflection ensure stable power transference and laser
beam consistency.
4. Adopt 3phases Yako stepper driver with high dynamic response performance and loading capacity.
5. Belt transmission type. High speed and precison with smooth cutting surface.
6. With advanced embedded RuiDa DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching,
perfectly realized the consistency of the corner cutting effect.
7. Specialized metal using non-contact follow-up system, ensuring same cutting quality for whole working table, no need
further processing for the fracture section, high efficiency, long
life time and more stable.
8. With auto height controller for laser head, can track the metal material surface and adjust suitable focus
length, ensuring the cutting quality.
9. High strength cutting table, applicable for metal and non-metal cutting.
10. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and
anti jamming capability.
11. Industrial water chiller CW-5000 is equipped to ensure the machine can work last long time.
Technical Parameters
| Effective working area | 1300*900mm |
| Laser Type | Co2 sealed-off laser tube |
| Laser tube power | W6 series, Reci, Beijing (Rated power: 130W, max. Power: 160W) |
| Working table | High strength knife strip |
| Oxygen control system | Yes |
| Laser head | Automatic torch height controller laser head structure for metal
materials |
| Driver mode | 3 phases stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | RuiDa control system 6332M |
| Control software | MetalCut |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Industrial chiller, CW-5000 |
| Water protection system | Yes |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Voltage | AC 220V+10% 50/60Hz, single phase |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Certificate | CE/FDA |
Reference Parts Photos
Reci W6 Co2 laser tube, rated power 130W, maximum 160W
Metal & non-metal laser cutting head with live focusing
Control cabinet with RuiDa 6442M mother board
RuiDa control panel

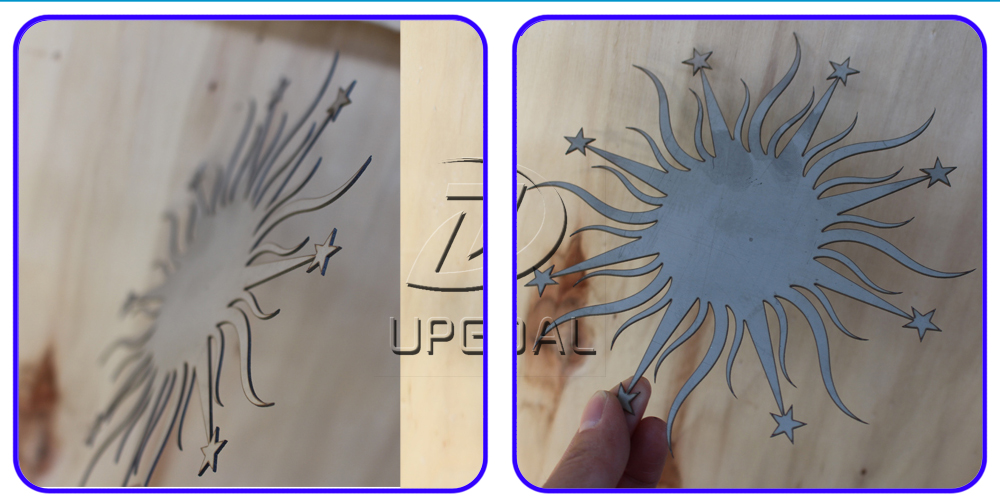

Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=hjugIa-ckVc
For more information, just feel free to contact us!
