    Mach3 Controlled Stable Metal Engraver Machine with 4 Axis/ Oil Mist Cooling

    Ask Lasest Price
    Brand Name : UPGOAL
    Model Number : UG-6060
    Certification : CE
    Price : USD3100-USD 3540 FOB QINGDAO
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 180 sets/month
    Delivery Time : Within 10-15 working days
    • Product Details
    • Company Profile

    Mach3 Controlled Stable Metal Engraver Machine with 4 Axis/ Oil Mist Cooling

    Mach3 Controlled Stable Metal Engraver Machine with 4 Axis/ Oil Mist Cooling


    Application


    Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.


    Features

    1. Cast Iron as a whole with vibration Temper aging treatment ensures no deformation for long time.

    2. Cast iron Working table with platform moving type. Durable without deformation enable positioning more preciously .

    3. Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.

    4. Three axis with precision ball screw transmission ensure the engraving speed and accuracy.

    5. High variable speed 3.2KW water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.

    5. China Leadshine hybrid servo motor and driver for XYZA-axis, ensuring high speed and precision working

    6. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.

    7. Oil mist cooling system, ensuring the cooling for the metal & hard materials, improving the processing precision.

    8. Half closed cover design, and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.

    9. Mach3 4 axis control system, with USB port for desktop or laptop computer, supporting XYZA-axis moving together, showing the processing path , more convenient.

    10. High precision fixed auto tool calibration, more convenient for operation.

    11. 4th axis rotary axis, diameter 160mm, working length 600mm, reduction gear transmission.

    12. With the function of Break-point memory ,power failure resuming and automatic home/orgin correction function.Effectively ensure long time working precision.

    13. Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

    14. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

    Technical Parameters

    Effective working area600(X)mm*600Y)mm*250(Z)mm
    MaterialsCast iron machine bed & working table & gantry & Z-axis
    Protection coverHalf cover
    Working tableCast iron with T slot
    Moving typePlatform moving
    Guide railLinear square guide rail ( Hiwin, Taiwan)
    TransmissionLead ball screw for XYZ-axis
    Driving modeChina Leadshine hybrid servo motor and driver
    Spindle motor3.2kw water cooling
    Spindle speed0-24000rpm
    InverterSunfar
    Voltage

    AC 380V+ 10%, 50/60Hz, three phases or

    AC 220V+ 10%, 50/60Hz, sinle phase

    Traveling speed>8000mm/min
    Engraving speed>6000mm/min
    Machine accuracy0.02mm
    Control systemMach3, 4 axis, with USB port
    Suitable softwareArtcam, Type3, Ucancam V9,etc
    Carving InstructionsG code *Uoo *mmg *plt HPGL
    Running environment temperature0-45 ℃
    Relative humidity30%-75%
    Cooling systemOil mist cooling system
    Tool calibrationAuto, fixed type
    CertificateCE

    Reference Parts Photos

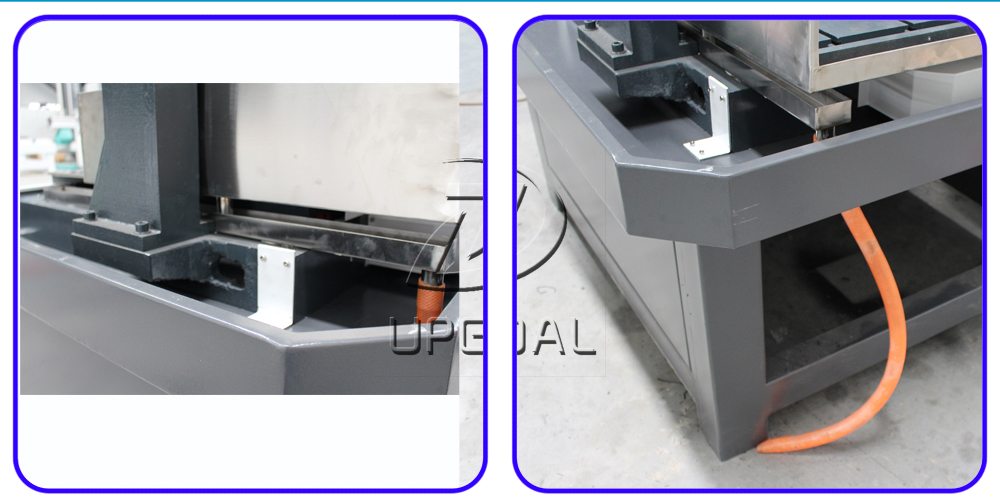

    Heavy duty cast structure

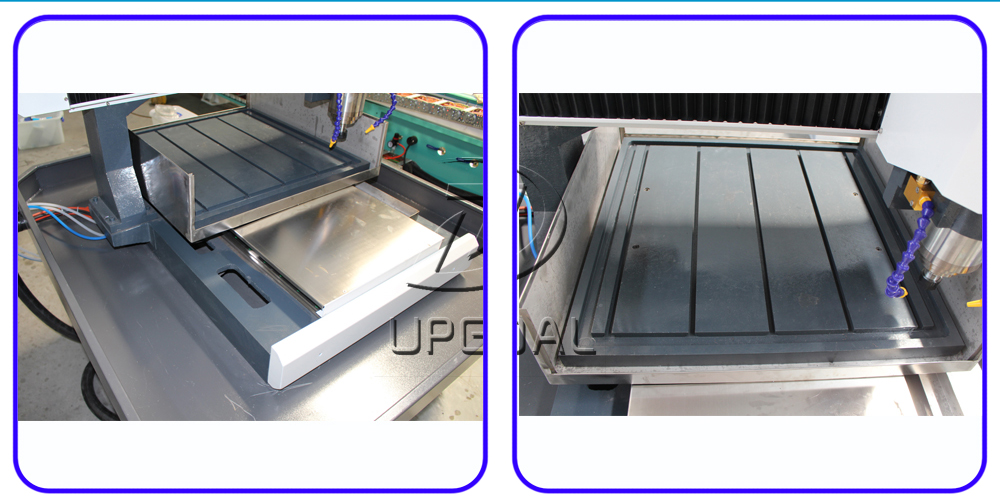

    cast iron T slot working table platform moving type

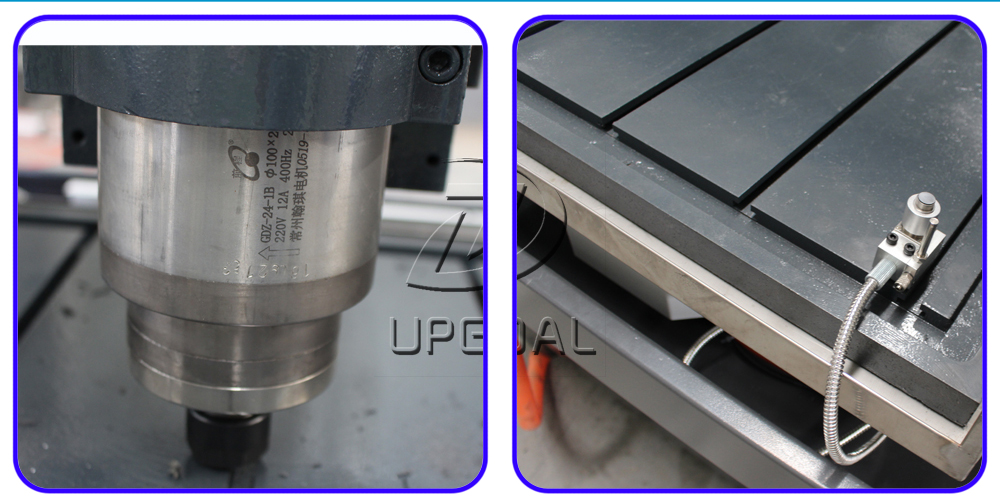

    3.2kw water cooling spindle, with fixed auto tool calibration

    Linear square guide rail, Hiwin, Taiwan and lead ball screw transmission for XYZ-axis

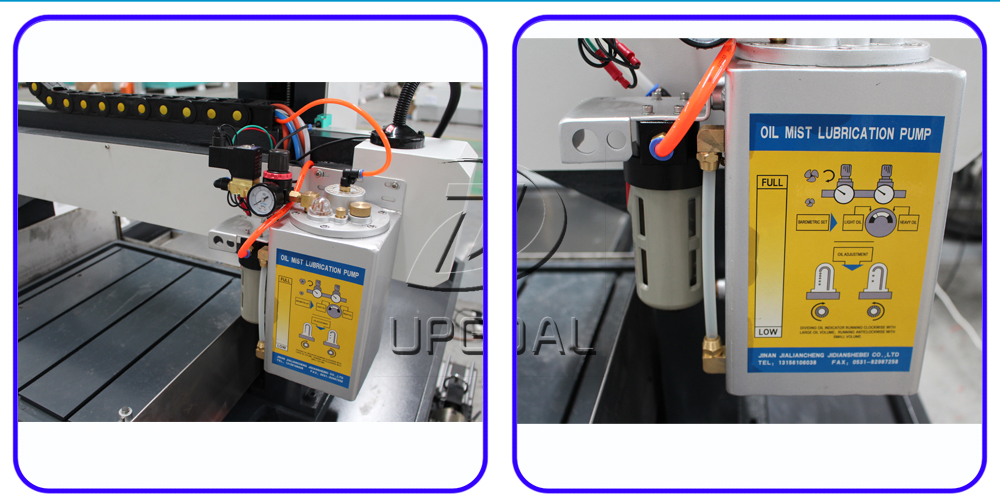

    Oil mist cooling pump

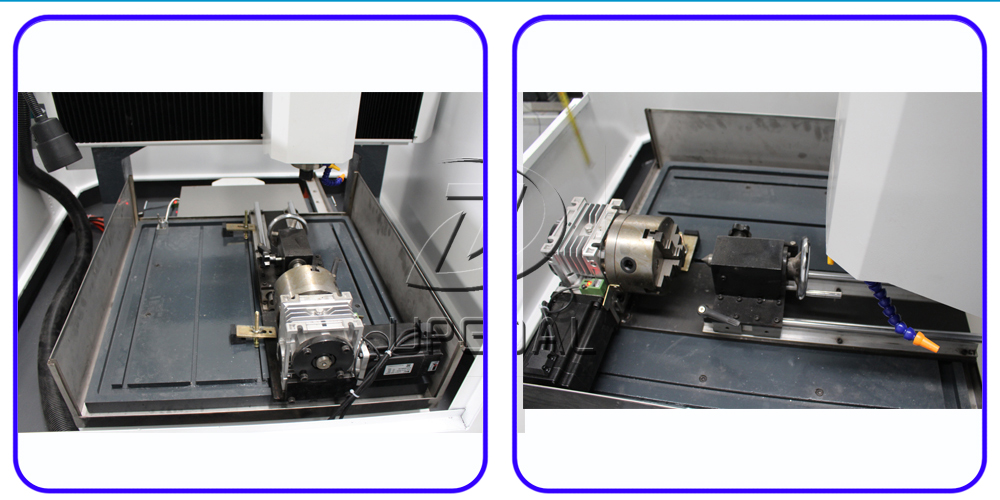

    4th axis rotary axis, diameter 160mm, working length 600mm, reduction gear transmission

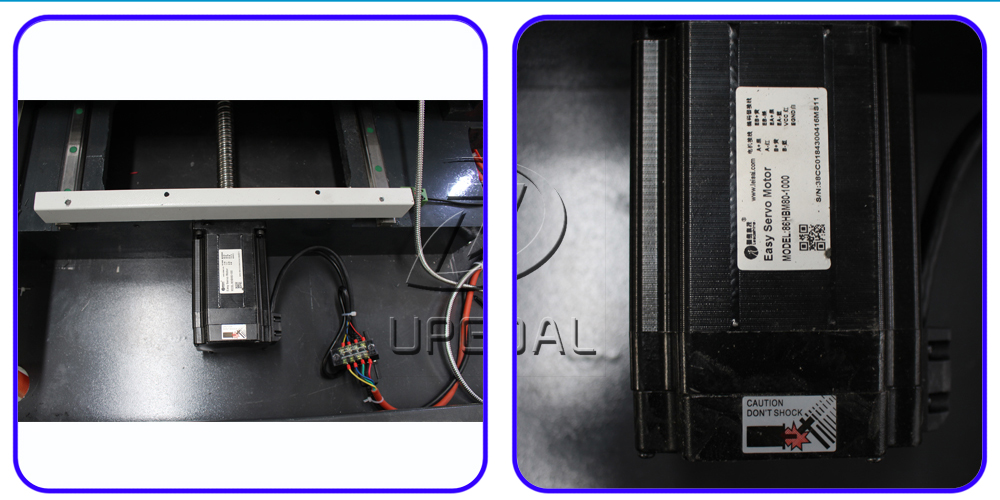

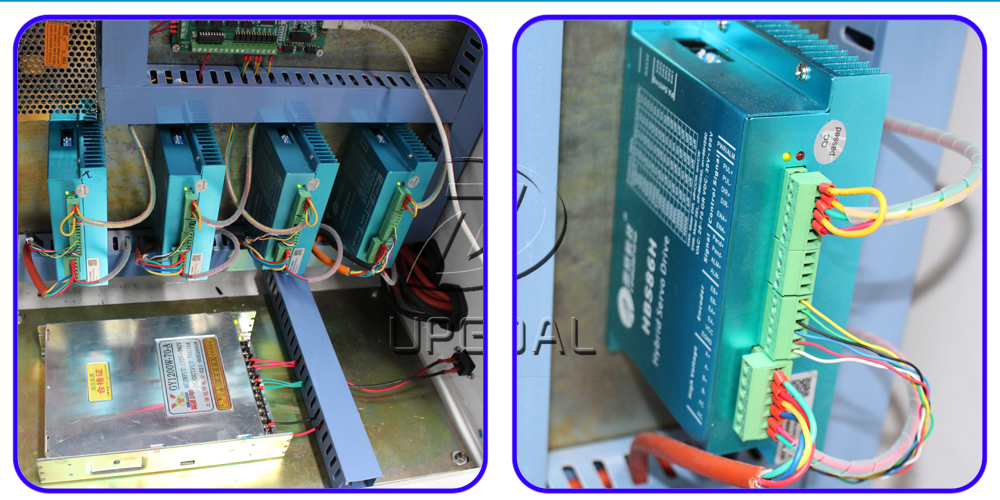

    Leadshine hybrid servo motor and driver for XYZA-axis

    Mach3 4 axis offline control system with wireless handwheel


    Stainless steel water slot

    Packing


    Reference Sample Photos

    Reference Working Videos


    https://www.youtube.com/watch?v=VoeB6hUbJ1E
